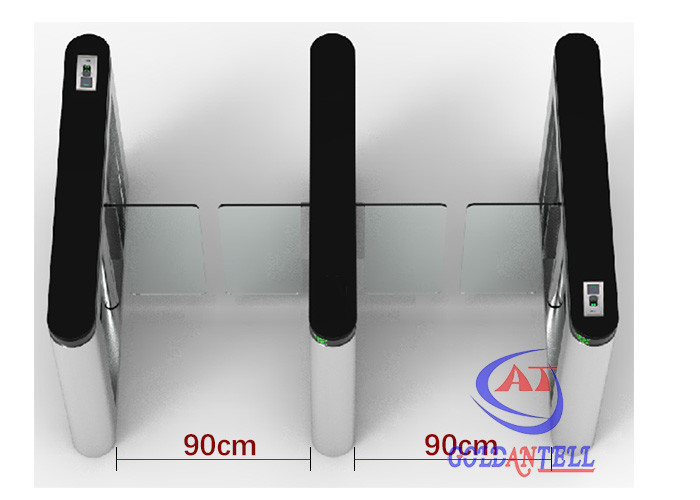

Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building

  • Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building
  • Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificate
Model Number GAT-686
Minimum Order Quantity 1pc
Price negotiation
Packaging Details carton + crate or closed wooden case
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 Stainless Steel, (or Custom 316) Dimension L1400xW200xH1000mm
Type Single Core & Double Core Passage Width 600mm, 900mm, Or Longer
Working Environment Indoor / Outdoor ( Shelter),indoor Warranty 12 Months
Direction One-way,bi-direction Adjustable Transit Speed 30~40 Persons / Min
Usage Office,Hotel,Library,Metro Station,ect.
Highlight

security swing gate

,

waist high turnstiles
Leave a Message
Product Description

Automatic DC Wholesale office building slim gate wide lane turnstile suitable swing barrier
——————————————————————————

Working Performance
1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.
2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.
3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.
6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.
7. With function of self-examine and alarm, it is convenient for maintenance and use.
8. Being able to program running status by the small keyboard in the main board.


Technology parameter
Optimal flow rate 40 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension1400(L)* 200(W)* 1000(H)MM
Open typepush button/ access control
Passing directionsingle in/out or Bidirectional
Working temperature-15°C +75°C
communication with computerstandard RS485, TCP/IP
Reset time after break downdefault 10s,can be changed to fit different demands
Wing Materialstainless steel
Access Readersrfid cards , fingerprint, Barcode ,ticket scanners
Input Connection+12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
More Optional functioncoin controller, counter , sound alarm, speakers
Running Life3 Million(Continuous Opening and Closing Operation)
Protection GradeIP54

Wide Lane Pedestrian Swing Gate , Automatic DC Entrance Barrier Gate Office Building 0


Product Display

Site Appication
Access Width : within 600mm space, more comfortable for pedestrian to pass through the gate.
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.


Feature & Function

1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
