Untouchable Handicap Turnstile Cylinder Automatic Barrier Gate 24V Brush DC Motor

Large Image : Untouchable Handicap Turnstile Cylinder Automatic Barrier Gate 24V Brush DC Motor

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/SGS/IS9001
Model Number:	GAT-614 (custom)

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7-9 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Automatic Swing Barrier	Size Of Product:	Pillar Diameter 168mm, Height 1000m
Material:	304 Stainless Steel	Type:	Fully Automatic
Application:	Apartment Door, Supermarket Entrance,buildings Office Entrance	Passing Speed:	35-40 Persons/min. (IC Card)
Access Width:	≤600mm, 900mm, Or More	Driving Motor:	24V Brush DC Motor
Operating Temperature:	-15°C-75°C	Communication:	RS485 Or TCP/IP
Highlight:	security swing gate , waist high turnstiles

Untouchable handicap turnstile cylinder automatic swing gate barrier price for sale

————————————————————————————

Working Performance

1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.

2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.

3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.

6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.

7. With function of self-examine and alarm, it is convenient for maintenance and use.

8. Being able to program running status by the small keyboard in the main board.

Technology parameter

Optimal flow rate	40 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension	diameter 168MM; height 1000mm
Open type	push button/ access control
Passing direction	single in/out or Bidirectional
Working temperature	-15°C +75°C
communication with computer	standard RS485, TCP/IP
Reset time after break down	default 10s,can be changed to fit different demands

Wing Material	stainless steel
Access Readers	rfid cards , fingerprint, Barcode ,ticket scanners
Input Connection	+12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
More Optional function	coin controller, counter , sound alarm, speakers
Running Life	3 Million(Continuous Opening and Closing Operation)
Protection Grade	IP54

Product Display

The passage width is around 750 ~ 1800mm, comfortable and convenient for Disabled / wheelchairs / luggage to enter and exit through machine.

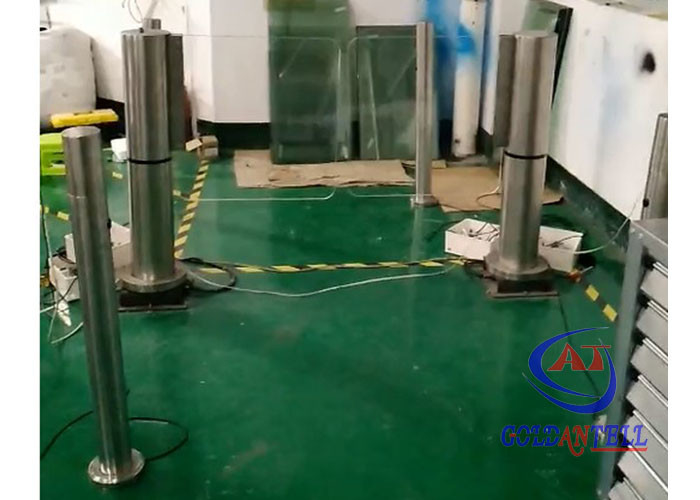

Untouchable Handicap Turnstile Cylinder Automatic Barrier Gate 24V Brush DC Motor 0

Site Appication

Access Width : within 900mm space, more comfortable for pedestrian to pass through the gate.

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

Feature & Function

1. With function of self-examine and alarm, it is convenient for maintenance and use.

2. Being able to program running status by the small keyboard in the main board

3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.

6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
