Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Goldantell | Finish: | Brushed Surface |
|---|---|---|---|
| Dimension: | L1200 X W280 X H1000mm | Arm Length: | 550mm |
| Operation Invi: | Indoor/outdoor | Transit Speed:: | 35 Persons/min |
| Communication Interface: | RS485, TCP/IP | Application: | Access Control System |
| Delivery Way: | By Sea/ By Aircargo / By Express | Warranty: | 2 Years |
| High Light: | pedestrian turnstile gate,turnstile entry systems |
||
Outdoor IP62 Waterproof Barcode Qr code Acess Control Tripod Turnstile ,Turnstile For Stadium / Tourist Spots
Technical Parameters For Access Tripod Turnstile
1. Protection: When the force exceeds the set value (such as 40 kg), arm will rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/stainless steel/cold sheet metal with paint
5. Drive Mode: DC electric motor
6. Anti-reverse: Have anti-reverse function in order to ensure one card for one person
7. Temperature:-10ºC~60ºC
8. Power:AC110/220V±10% 50Hz±4%
9. Humidity:5%~95%
10. Output:DC24V,DC12V,DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:<50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width: 550~570mm
16. Interface Parameter: One Rs 232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life: Ten years (non-consumable)
19. IP Protection:IP42
20. Dimension: L*W*H: 1200 x 280 x 980(mm)
21. Net Weight: 75kg

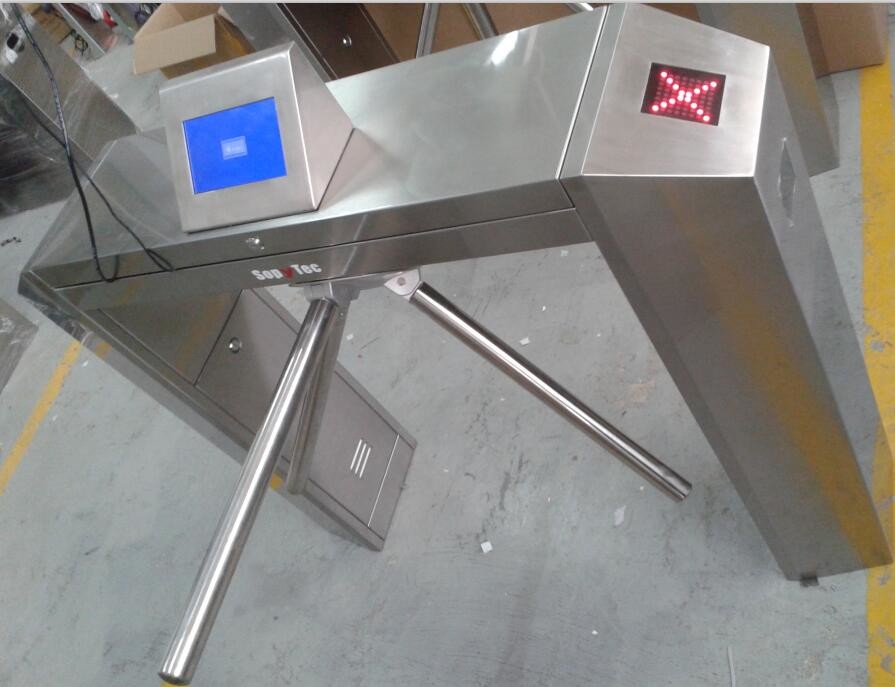

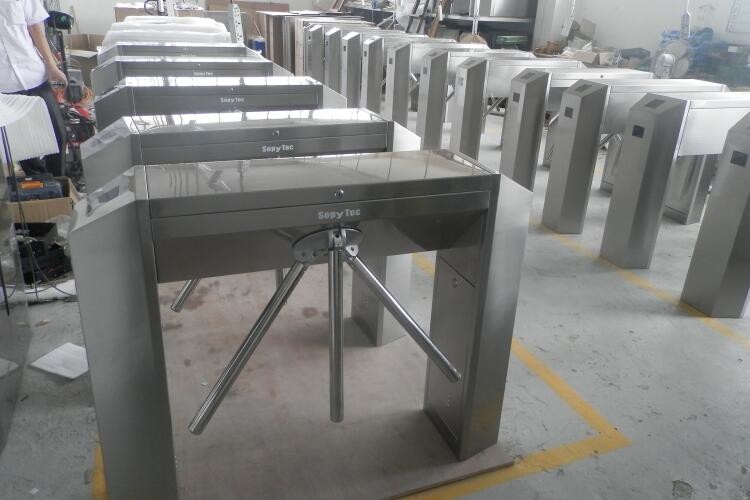

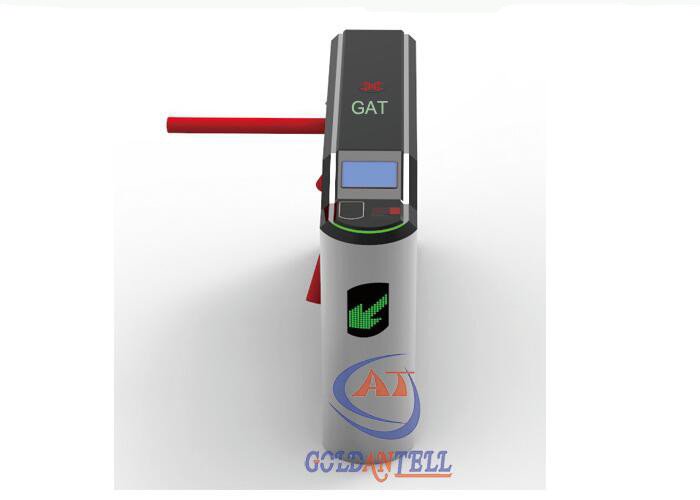

Product Pictures
Certficate
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application:
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control
Competitive Advantage
1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. we can provide not only product, but also system software management.Save your time and cost.
3.Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4.Friendly and professional customer service people help you in 16 hours.
FAQ
We have our own factory in Shenzhen with independent department for purchasing, producing, testing, packing, storing and transportation, 12 years experience in security industry makes us one of the best suppliers in China.
Surely, OEM&ODM is available.
2. Do you sell the accessories for Products ?
Yes, we could provide all the accessories for our equipments, once you become our customer, you get our commitment of life-long service.
3. How about the package for product? Is it easy damaged during transportation?
For stainless steel turnstiles usually inside a carton then outside wooden case is required.
4. What's your main product?
We are professional in turnstiles, barrier gates, parking products. Today, we are more likely to provide systematic security solutions.
5. Where is your main sales market?
We have a high reputation in Chinese domestic market, and we have expanded quickly to every country of the world with our competitive quality and price.
6. What about the delivery time?
Waist high turnstile, barrier gates: 7-10 working days
Full height turnstile: 12 working days
If need install system,need need 1 working days.
7 . How about the after sales serivce?
All products from Goldantell with 2 years quality guarantee,our special serivce is:no need you send back the spare part if there's any quality problem,we will send the spare part to you by fastest express.98% suppliers in China could not do this!
OEM & ODM
Powerful OEM and ODM ability!Can make turnstile solution according your design or your idea accordingly!
