Product Details:
Payment & Shipping Terms:
|
Ir Sensor: | 4-6 Pairs | Application: | Movie Or Fitness Certer Or Hotel Or Restaurant Entrance |
---|---|---|---|
Product Name: | Bi-directional Flap Turnstile | Product Size: | 1200*280*1000mm |
Passway Width: | In 700mm (can Be Custom According To Your Requirement) | N.W: | 65kg |
G.W: | 70kg | Material: | 1.5mm Thick 304stainless Steel |
High Light: | Flap Barrier Turnstile,Flap turnstile |

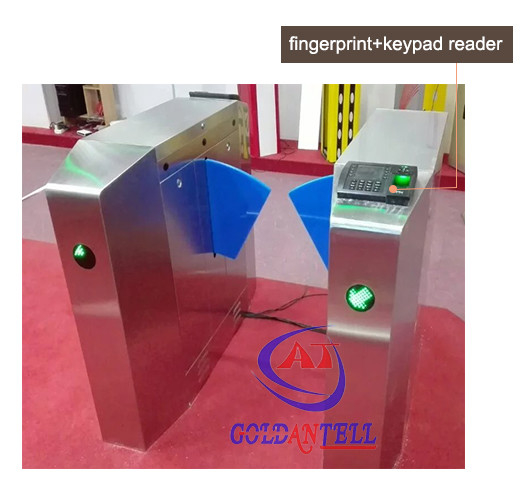

Passage optical Flap Barrier Gate, bi-directional Bus half height turnstile sound Alarm
Quick Description
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
GAT-206 Technical Data
Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
Cabinet material | 304 stainless steel (316 ss can be custom-made) |
Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
Flap opening/closing time | 0.6-0.8s |
Stretching-out flap length | 285 mm for single wing; if for the disable access, can lengthen |
Access mode | single in/out or Bidirectional |
Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
Reset time after break down | default 10s,can be changed to fit different demands |
Temperature | -15°C-75°C |
Function Description
1. Safety function(anti-pinching). By default flap wing will auto- reverse if IR sensor detected obstacle within the flap wing area. This avoid flap wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the flap wing to ensure flap wing is easily visible.
2. Anti-tailgating/ anti-retrogradation function: Flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
4. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
More GAT-206 Access Control & Application
1) Fingerprint scanner: advised to use indoor
2) Swipe card + ESD tester, Biometric access terminal: to install and equip with the scanner or readers required.
Application -Field Application
Flap turnstile barrier Series are widely suitable for Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control.
OUTDOOR–apartment entrance
