Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor

  • Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor
  • Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor
  • Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-230
Document GAT-230 flap barrier gate d...os.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 1200*280*1000mm Communication Port RS485 ,TCP/IP
Application Movie Or Fitness Certer Or Hotel Or Restaurant Entrance Product Name Width 900mm Double Wing Turnstile
Passway Width In 900mm (can Be Custom According To Your Requirement) N.W 65kg
G.W 70kg Material 304stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

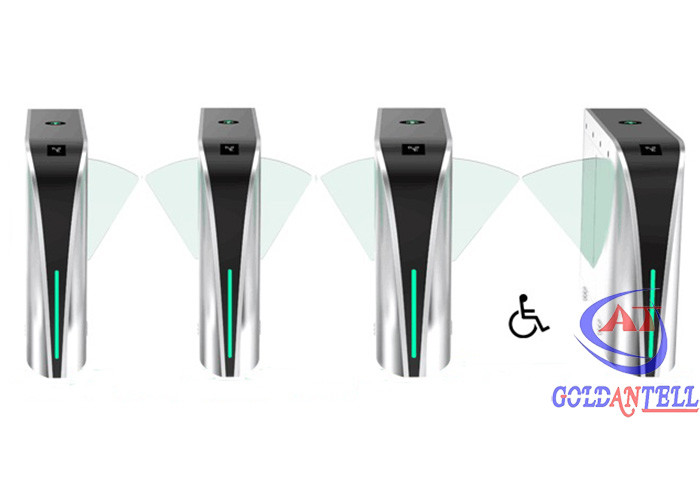

Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor
Product Description
Heavy flow DC brushless motor pedestrian control electronic flap turnstile designed for high-traffic security areas with advanced access control integration.
Key Features
  • LED indicator lights (green/red) for clear passage status
  • Special stretch wing design reduces closing time and improves passage speed while preventing tailgating
  • Bi-directional lanes compatible with facial detection temperature scanners, RFID, fingerprint, QR/barcode, and ESD access control systems
  • Premium 304 stainless steel construction with customization options
  • Custom branding services including LOGO printing and design modifications
Technical Specifications
Item Specification
Model Bridge type flap turnstile (single or double motor options)
Dimensions 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260 mm
Passage speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Operational lifespan 3 million cycles
Opening/closing time 0.6 second
Power-on activation 3 seconds
Reset time after failure 10 seconds
Direction options Single or bi-directional
Motor DC 24V brush motor
Operating environment Indoor/outdoor (with cover) -10℃ to 70℃
Communication interface RS 485 (distance ≤1200m)
Input interface +12V level signal or pulse width >100 ms
Housing material 304 stainless steel
Power supply AC220±10%V 50±10%HZ
Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor 0
Advanced Functions
  • Fault detection and alarm system for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch protection with automatic reset
  • Anti-breakthrough locking mechanism
  • Synchronization for dual gate configurations
  • Automatic user authority cancellation for delayed passage
  • Configurable as normally open or closed
  • Compatible with multiple access technologies (IC/ID cards, biometrics, barcodes)
  • Direction indicators with LED lighting
  • Fire safety compliant power-off behavior
  • Intrusion detection and alarm system
  • Optional counter function
  • Infrared photocell anti-pinch protection
Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor 1
Ideal Applications
  • Movie theaters
  • Fitness centers
  • Country clubs
  • Fairgrounds
  • Nightclubs
  • Swimming pools
  • Gyms
  • Hotels
  • Factories
  • Banks
  • Hospitals
  • Schools
Heavy Flow Electronic Flap Turnstile Security Gate Barrier DC Brushless Motor 2
Competitive Advantages
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including management software
  • Remote troubleshooting service with free spare parts replacement within warranty
Frequently Asked Questions
How long is your warranty period?
One-year guarantee with lifetime technology support.
What payment methods do you accept?
Orders ≤$5000: 100% T/T in advance. Orders >$5000: 50% deposit, 50% before shipment (negotiable). We accept T/T, Western Union, LC, PayPal.
Can we visit your factory?
Yes, visitors are welcome at any time.
What packaging do you use?
Export: Wooden case with pearl wool and plastic wrap. Domestic: Bubble wrap with carton or pearl wool with wooden packaging.
