Product Details:
Payment & Shipping Terms:
|
| Product Size: | 520(L)* 175(W)* 215.5(H)CM | Material: | 316 / 304 Stainless Steel |
|---|---|---|---|
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port: | RS485 ,TCP/IP |
| Application: | Prison, Factory, Government Etc. | Verification: | RFID, Fingerprint, Facial Optional |
| Direction: | One-way, Bi-direction Adjustable | Passage Width: | 60-65cm |
| Opening Speed: | 25-30 Persons Per Min | ||
| Highlight: | automatic entrance turnstiles,controlled access turnstiles |
||
Philippines Stadium Full Height Turnstile / biometric access control barrier gate in outdoor
Descriptions
The body is made from brushed stainless steel which creates a seamless and elegant design. 3 arms can rotate in one or two directions by controlled drive mechanism. in case of emergency turnstile can be unlocked either manually or automatically. Robust mechanism with intelligent control unit make it more reliable. It is intensive use with sooth operation. Its unique features with extensible functions allow it to integrate with various kinds of access control, including rfid / fingerprint/ qr code /barcode / ticket / ESD testing / facial recognition system.
Functions & features
>>Standard features
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
>>Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
Specification
| Lane No' | Turnstile model | Dimension/size |
| 1 | GAT-511 | 1500 (L) * 1350 (W) * 2300 (H) mm |
| 2 | GAT-510 | 2400 (L) * 1250 (W) * 2300 (H) mm |
| 3 | GAT-525 | 4100 (L) * 1500 (W) * 2300 (H) mm |
More Specification
| Power | AC100-240V,50/60HZ |
| Passage width | 600 mm, can be custom-made |
| Operating temperature | -15°C--75°C |
| Relative Humidity | ≤95%, No Condensation |
| Communication Distance | ≤1200m |
| Passing Speed | 25~30 persons/min(IC Card/ID Card...) |
| Motor | 0.5NM/24V(Fully Automatic) |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| Communication Connection | RS485 Communication Module Standard. |
| Material | SUS304 or Carbon Steel Powder Coating |
| Direction | single or bi-directional (optional) |
| Time of opening | 1-2 second |

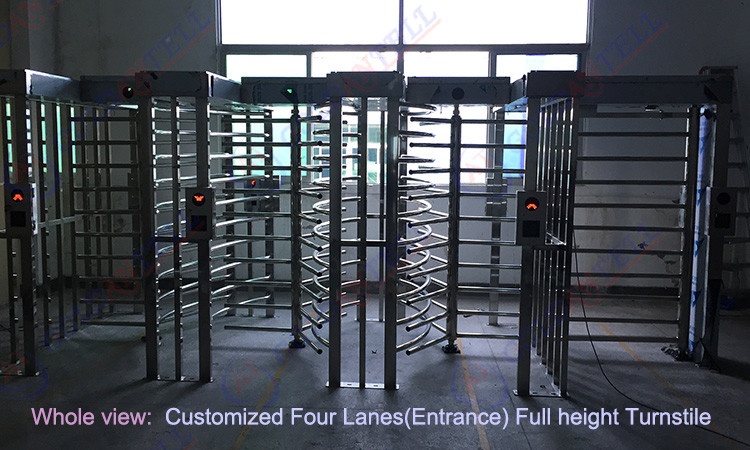

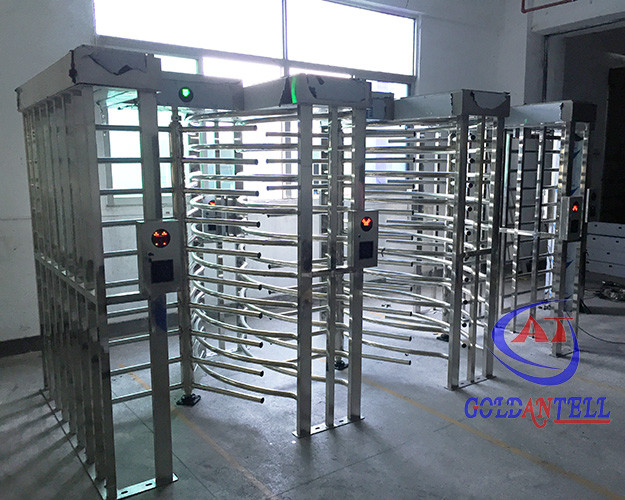

Details Photos & Projects
A. we can make different kinds of Rotary Arms. a. Type: straight or " U " shape; b. Four arms or three arms (90 / 120 degree)
B. we attach a waterproof stainless steel Box on our product, so can install biometrics readers inside, protect them as well.
please refer to above picture, the left is only RFID cards reader inside; right is Fingerprint + cards both (high waterproof for outdoor).
Details Introduction
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin- operation, access control system like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
