Customized Rfid Acess Control Full Height Turnstile Gate For
Entrance And Exit
Full Height Turnstile Gate Features:
The whole system runs smoothly, long-life performance, high operation dependability and fast response.
The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
Self-test function, when power on, system restoration automatic.
Dual-bearing device, keeping the gate in balance when there is external force.
Single directional or Bi-directional is selectable.
LED indicator.
Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.
When power off, turnstile lane will be free to pass, complying with fire safety requirements.
Full Height Turnstile Gate Specifications:
|
Technical parameters
|
| Housing material |
domestic standard 304#
stainless steel
|
| Size |
1630*1500*2300mm (MM)
|
| Working voltage |
AC220±10%V 50±10%HZ
|
| Working movement |
DC24V solenoid valve
|
| Roof Dimensions |
Φ1500MM
|
| Passage width |
≤600 mm
|
| Reset time after break down |
10 seconds
|
| Time of opening |
0.2 second
|
| Pass speed |
40 persons/min
|
| Time to work after power on |
3 seconds
|
| Normal running life |
3 million
|
| LED light |
direction arrow
|
| Direction |
single or bi-directional (optional)
|
| Working environment |
indoor/outdoor (with a tent over) -25℃ ～ 70℃
|
| Relative humidity |
≤90% coagulation free
|
| Communication interface |
standard RS485 interface,
distance ≤1200m
|
| Input interface |
+12V level signal or pulse
width>100ms
12V pulse, drive current>10mA
|

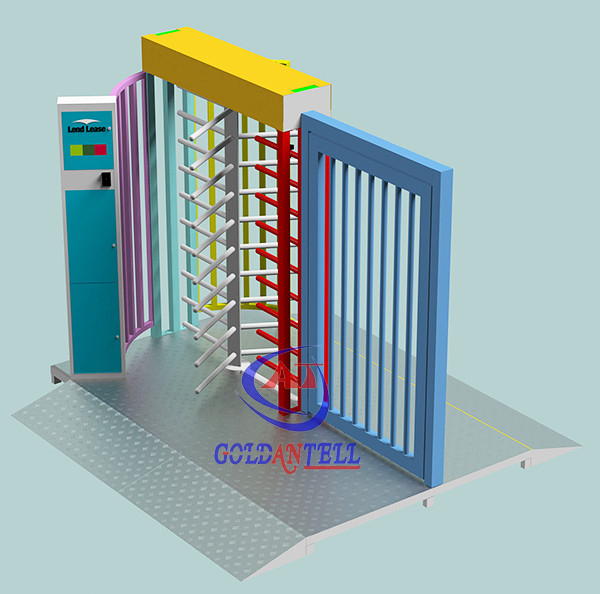

Full Height Turnstile Gate Picture:
Full Height Turnstile Gate Package:
Full Height Turnstile Gate Project:
Where are our customers?
We have sold tursntiles to more than 50 countries ,like Brazil,Chile,Pure, Colombia,
United States,Australia,Canada, New Zealand, the Netherlands, Switzerland, Sweden,German, Portugal,
Philippines,Vietnam, Singapore, Malasia,Saudi Arabia, Kenya,Nigeria, Zambia, Angola, Egypt, Ghana,
Paraguay, Nepal and Myanmar and so on.
Trade Term
Normal offer is valid with 30 days.
Delivery time: Within 7 days after receive the payment
Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery
Carton box+wooden case/crate
Delivery detail:
When ship by sea,it normally takes 15-60 days depend on different countries.
We ship goods by UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to
arrive;
We can also help you ship by air cargo ,it takes about 2-7 days to arrive;
No matter what delivery way ,depending on your actual requirements.
Our services:
For all your inquires about us or our full height turnstiles, we will reply you in detail within 24 hours
We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
We offer OEM services. Can print your own logo on full height turntile , can customize the retail box
packing and other things.
We have very experienced engineers ,can help you better use full height turnstiles.
We can do customized like below:
material:202 SUS,304 SUS,316 SUS under your choice
shape:tell us what shape you want,we can make according your design
size:different country require different size.
