CE 120 Volt Power supply Tripod Turnstile Gate With Coin Collector , Stable Working
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-306 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 420mm (L) * 330mm (W) * 1000mm (H) | Package Size | 520mm (L) * 430mm (W) * 1100mm (H) |
|---|---|---|---|
| Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port | RS485 ,TCP/IP |
| Application | Pulic Toilelt, Park, Office Building, Club, Etc. | Net Weight | 45KG |
| Gross Weight | 50KG | Product Name | Coin Operated Turnstile |
| Material | 304 Stainless Steel | Control Way | By Coin Or Token |
| Highlight | tripod access system,pedestrian security gates |
||
Product Description
CE 120 Volt Power supply Tripod Turnstile Gate With Coin Collector , Stable Working
Specifications
| Size |
420 mm (L) * 330 mm (W) * 1000 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Arm width: | 510 mm |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Housing material |
domestic standard 304# stainless steel |
| Input interface: |
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |

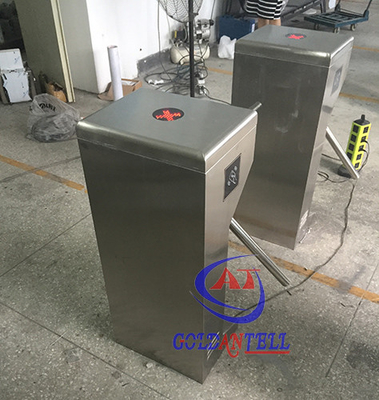

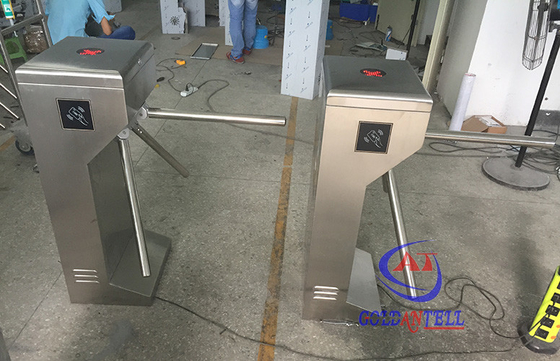

Details show

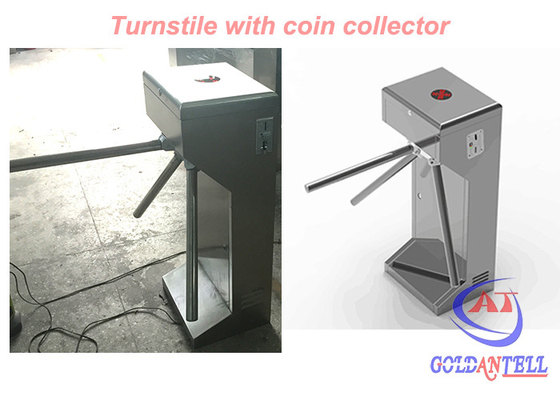

All of our turnstile can install the coin or token collector. it is very easy for you to use and operate our product.
Feature & functions
| Tripod turnstile function & Features | |
| 1 | LED counting function |
| 2 |
Turnstile can setting the working condition by press the button of main control board. |
| 3 |
Auto-lift-arm function: the arm can lift automatically with alert when the power is on again. |
| 4 |
Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off. |
| 5 |
Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). |
| 6 |
The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on. |
| 7 |
Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate. |
| 8 |
LED indicator light |
| 9 |
The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile). |
| 10 |
Can manager and long-range control the turnstile directly by managing the computer. |
| 11 |
Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. |
Package
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
Widely used Application
1. Public Places: Toilet, Subway,Stations,Bookstores, Parks, Exhibition halls, Stadium.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
3. Business Organizations: Hotel,Factory,School, Enterprise’s Entrance and Exit Attendance.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.
