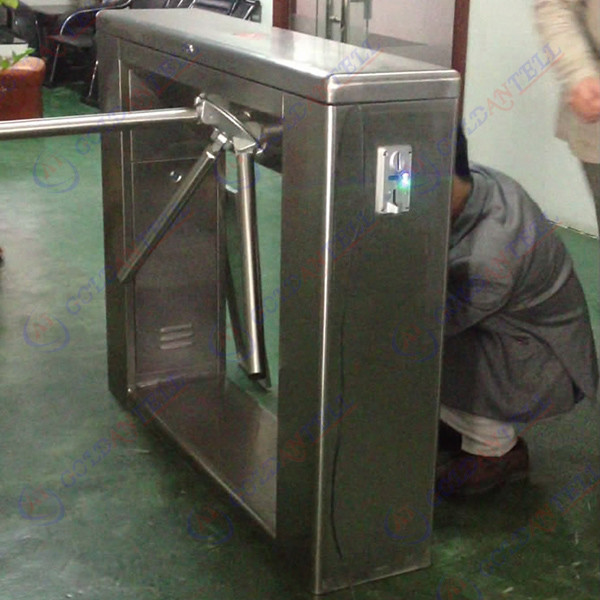

TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door

  • TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door
  • TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door
  • TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door
  • TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificated
Model Number GAT-301
Minimum Order Quantity 1pc
Price negotiation
Packaging Details wooden case
Delivery Time 7-9 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*280*1000mm Material 304 Stainless Steel
Package Wooden Case Net Weight 60KG
Gross Weight 65KG
Highlight

tripod access system

,

pedestrian security gates
Leave a Message
Product Description

TCP / IP communication Half height Entry Coin operated turnstile, Coin machine door

Product Profile
1. Standard features: Made of 304 /316 stainless steel, Goldantell tripod turnstile with nice and elegant shape, anti-rust,durable, Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
3. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent community, hotel, clubs, enterprise, etc.
4. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.

Technical Parameters of Coin / token machine          Features of Coin / token machine

Technical Parameters Of Token Machine

Features Of Token Machine

Coin Diameter 18mm~30mm
Coin thickness 1.5mm~2.6mm
This set system including:coin controller+stainless steel collector box;
Operating voltage DC12V±10%;
Pulse width 20ms/40ms/100ms
Operating current 650mA;
Output mode OC.
Operating Temperature -15℃ ~+ 75℃
Package size 455mm*340mm*272mm

 1.Suitable for a variety of coins.
2.CPU process control, and accurate scoring.
3.Special precision / normal stall, coin smoother.
4.Pulse output,available widths.
5. Prevent phishing and other means of cheating,cheat alarm.
6.To prevent money being diverted to(400400M) the small.
7.Wire part of the whole SMT technology, quality and stability.


Turnstile Features & functions

-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)


TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door 0

Specification

Product Model
 GAT-301

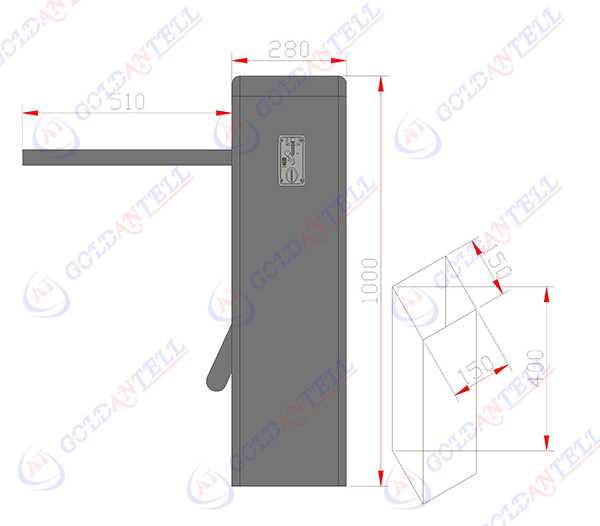

Product Size
 1200 *280*1000mm
Path width
 in 600
Direction
 single or bi-directional (optional)
Time of opening/closing
 0.6 second
Pass speed
 30 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million
Working environment indoor/outdoor (with a tent over) -10℃~70℃
Drive motor DC24V brush motor




Our Project Introduction For Your Reference

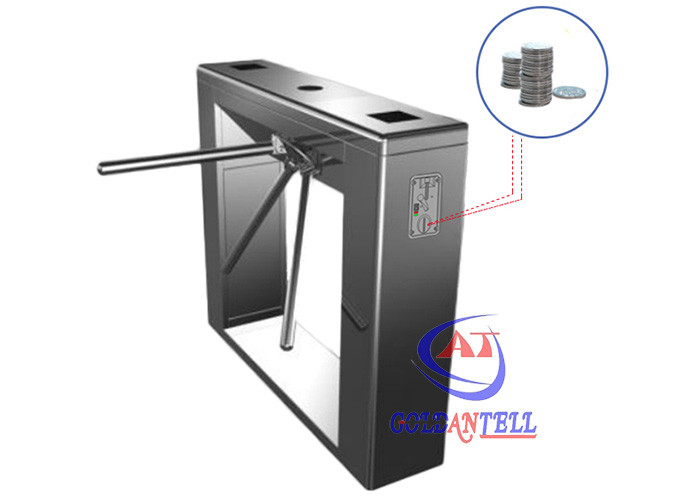

1. as for entry (input) access, drop a coin / TOKEN into Slot on gate machine side, gate will soon open for users.
2. as for exit (output) access, free access with Infrared sensor.When sensing people enter into infrared area, gate will automatically open to let people freely out.
TCP / IP Communication Coin Operated Turnstile Half Height Entry Token Machine Door 1


Packing details:
a. Inner package - bubble bags
b. Outer package -a whole crate package is advised; or wooden case package.


Shipment terms
a. if <10pc, ship in 7 working days
b. > 50, ship in 10-15 working days
c. For customized product, with ship in 7-12 working days according to the detailed customized requirements
