IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V

  • IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V
  • IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V
  • IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V
  • IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-306
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details carton+wooden case/crate
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material 304# Stainless Steel Working Voltage AC220±10%V 50±10%HZ
Working Movement DC24V Solenoid Valve Size 420mm (L) * 330mm (W) * 980mm (H)
Arm Width 510 Mm Support Force Of Arm 80kg
Passage Width ≤600 Mm Direction Single Or Bi-directional (optional)
Working Environment Indoor/outdoor (with A Tent Over) -10℃～70℃ Relative Humidity: ≤90% Coagulation Free Pass Speed 30 Persons/min
Warranty 2 Years Delivery Normally By Sea / By Carcargo /by Express
Highlight

turnstile security gates

,

stainless steel turnstiles
Leave a Message
Product Description

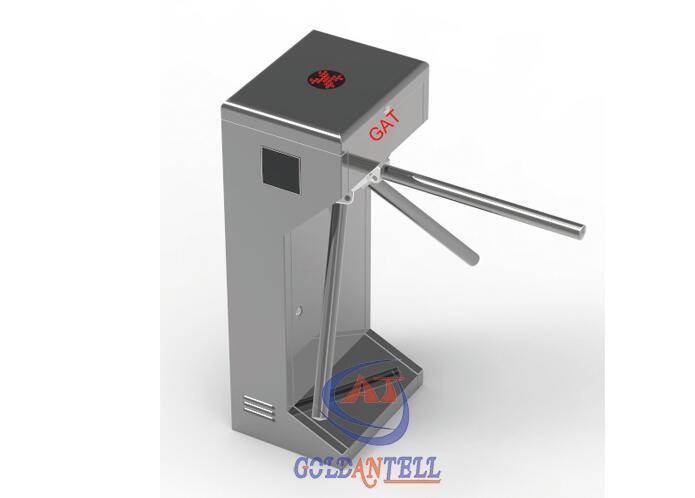

Waterproof Indoor Outdoor IP62 IC ID Card Access Three Arms Turnstile Bidirectional 110V / 220V





Specifications:

Item

GAT-306


Working voltage:

AC220/110V ±10%V 50±10%HZ


Time of opening

0.2second


Reset time after break down: 10 seconds
Relative humidity

≤90% coagulation free


Transit speed

30-40 people/minute


Input interface:

RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Communication interface

RS485/232


Direction:

single or bi-directional (optional)


Communication interface

standard RS485 interface, distance ≤1200m


Normal running life

3 million


Trade terms

EX-W,FOB,CIF,DDU(select area)





Appearance, Dimension, Material & Surface Finish



Appearance: customized according to customer’s requirement.

      Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.

Material of the cabinet: 304 / 316 grade stainless steel.

Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.





Direction Indicator

The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized.





Application:



Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control

IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V 0

IP62 IC ID Card Access Three Arms Access Control Turnstiles Bidirectional 110V / 220V 1



Packing&Shipping:



Size 420mm (L) * 330mm (W) * 980mm (H)
Gross Weight 45 kg
Packaging Details The normal package is wooden box
Inside carton,outside export crate pacakge or wooden case(no need fumigated)





System Integration



Integrate with access control system required by customers, and built-in reader appointed by customer.

Integrate with visitor management system.

Integrate with ticketing system.






Direction Indicator



The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized.





Competitive Advantage



1.More than 11years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.



2. we can provide not only product, but also system software management.Save your time and cost.



3.Special service from Goldantell:



For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 2 years,we will send you spare parts by fastest express,you no need bear any fee.



4.Friendly and professional customer service people help you in 16 hours.
