Product Details:
Payment & Shipping Terms:
|
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Product Name: | 304 SUS Flap Turnstile |
|---|---|---|---|
| Material: | 304 Stainless Steel/316 Stainless Steel | Size Of Product: | 1200*300*1000mm |
| Package Size: | 1310*410*1110mm | Application: | Indoor&outdoor |
| Net Weight: | 70KG/pc | Gross Weight: | 65KG/pc |
| Communication Port: | RS485 ,TCP/IP | ||
| Highlight: | turnstile security gates,biometric attendance system |
||
35 person / min quick running retractable arm drop rfid control plus esd checker flap barrier price
Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&QR code/Bar code System&ESD Tester Access Control (If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote to control.
Technology Parameter Of GAT-ESD305 Tester System
| 1 | Instrument Dimensions |
8 inch LCD monitor: display all info of users, like photo, name, card ID,depart, entry time,etc. |
| 2 | pedal size | (W) 400mmx (L) 420mmx (H) 20mm |
| 3 | Operating voltage | input AC220V output DC12V |
| 4 | Working hours | unlimited |
| 5 | Environmental conditions | Humidity: 0%~90%, Temperature: 5C°~ 40°C |
| 6 | Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more. | |
| 7 | Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.) | |
|
Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5% |
||
| Technology Parameter Of Turnstile Gate | ||
| 1 | Power | AC220(or 110v) ±10V,50HZ |
| 2 | Operating temperature | -15°C--75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Pathway length | 60cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
Product Show

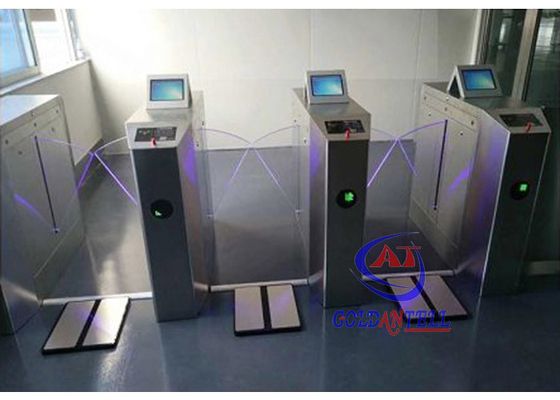

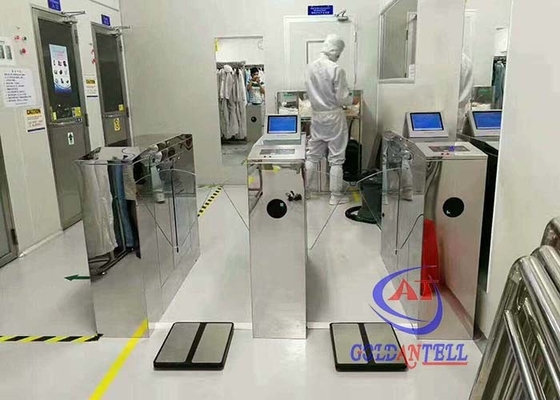

1. Flap Turnstile Gate + ESD tester system GAT-ESD305 (include software and Card access control system)

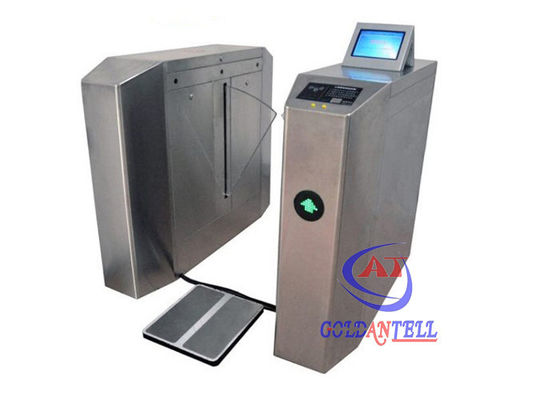

2. Flap Turnstile Gate + ESD tester (no control software for this type)
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
