Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Application: | Metro, Train Road, Apartment | Material: | 304 Stainless Steel |
|---|---|---|---|
| Size: | 1400*280*1000mm | Transit Speed: | 40 Persons/min |
| Working Environment: | -10-50℃,outdoor( With A Tent Over) | Name: | Subway Turnstile |
| Motor Voltage: | DC24V | Communication: | RS485,TCP/IP |
| High Light: | waist high turnstiles,turnstile entry systems |
||

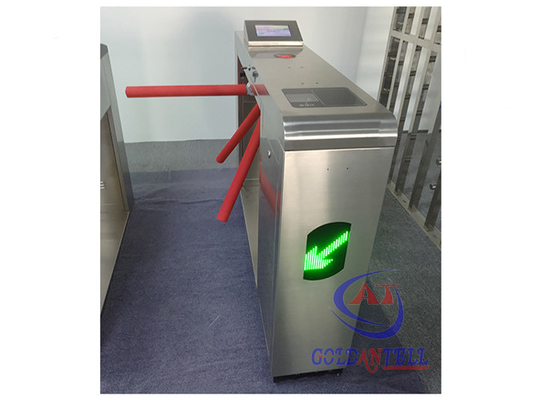

High quality LCD display metro turnstile pedestrian barrier with token acceptor and rfid TICKET reader
Brief introduction
It's specially used for heavy traffic of public mass transportation such as bus or train / metro station. with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction. For access control,it can be easily integrated with various kinds of third readers, including token/coin acceptor, rfid / fingerprint/ qr code /barcode / ticket / ESD testing / facial recognition system.
1. Standard features: made of 304 stainless steel; IP 54,waterproof , with nice and elegant shape, anti- rust,durable.
2. CE Certificated
3. Default system setting: free open for passing if the power is off.
4. System Integration: be compatible with RFID / fingerprint / QR or barcode / ESD access control system, to manage
Specification
|
Standard Technical Details
|
|
|
Product Model
|
GAT-DT310 |
|
Product Size
|
1400 (L)* 280(W)* 1000(H)MM |
|
Passage width
|
in 600mm |
|
Direction
|
single or bi-directional (optional) |
|
Time of opening/closing
|
0.6 second |
|
Pass speed
|
40 persons/min (open), 25-30 persons/min (closed) |
| Emergency | When power off, arm open automatically |
| MTBF | > 5 million |
| Working environment | indoor/outdoor (with a tent over) -10℃~80℃ |
| Working movement | DC24V solenoid valve |
Standard Features
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
GAT-DT310 Standard Shape
1 LCD screen is optional according to your demand.
2 reading area for nfc cards (ticket or qr coce system)
3 single direction for passing; entry
4 red color arm (optional)
Dimension Drawing,1400*280*1000mm
