Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
Product Details:
Payment & Shipping Terms:
|
Product Name: | Flap Barrier Gate | Size: | 1200/1400*280*990mm |
---|---|---|---|
Working Voltage: | AC220±10%V 50±10%HZ | Material: | 304 Stainless Steel |
Pass Speed: | 30-4 Persons/min | Interface: | RS485, TCP/IP |
Normal Running Lif: | 3 Million | Arm Length: | 260mm |
Thick Of Steel: | 1.5mm Or Custom Design | Power Supply: | 220~240 V(AC) |
Highlight: | Flap Barrier Turnstile,automatic flap barrier |

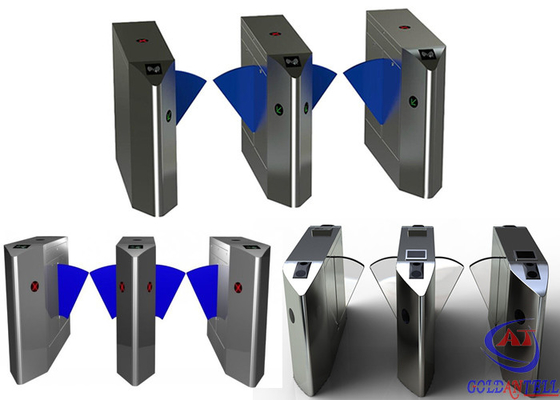

Brush Motor Flap Barrier Gate For Office / Hospital Building Automatic Systems Turnstiles
Flap Barrier Gate Technical parameters
1 . Material : domestic standard 304# stainless steel
2 . Working voltage : AC220±10%V 50±10%HZ
3 . Size : 1200/1400mm (L) * 280mm (W) * 990mm (H)
4 . Passage width : 550--600mm
5 . Drive motor : DC24V brush motor
6 . Retractable arm length : 260 mm
7 . Normal running life: 3 million
8 . Working environment : -10℃~70℃
9 . Direction : single or bi-directional (optional)
10 . Pass speed : 40 persons/min (open), 25-30 persons/min (closed)
11 . single motor (suitable for single passageway and multiple passageway)
12 . Double motors (suitable for multiple passageways)
13 . Communication interface : standard RS485 interface, distance ≤1200m
Standared function &features
1 . Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.turnstile can check by itself when it is have problem, it is good for customer to maintain and use
2 . Turnstile can setting the working condition by press the button of main control board.
3 . This model is newest second generation of movement (mute), soft baffle (PU mold)
4 . Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
5 . The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
6 . Before received the open signal, the turnstile will lock automatically
7 . Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
8 . Infrared reset function & Infrared induction clamp function
(Optional:3 pairs or 5 pairs Infrared)
9 . The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
10 . The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
11 . Can manager and long-range control the turnstile directly by managing the computer.
Extended Function
1 |
LED indicator light |
2 | Voice Prompt Function |
3 | Sound and light alarm prompt functions |
4 | Box house can lengthen, telescopic arm color can choose |
5 | Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared) |
6 | Normally open or closed can be adjust to meet the requirements of the different place |
7 | Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately |
Goldantell product application
This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
About the package
1 . If with access control system, need closed wooden box packing.
2 . Without the access control system, two ways for your choice: crate and closed wooden box.
About access control system
1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2 . ESD tester system and function.
3 .support special function: counter, coin- operation.
All this customize according to your demand
Goldantell more flap barrier gate to choice
About our Goldantell
Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience.
Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
