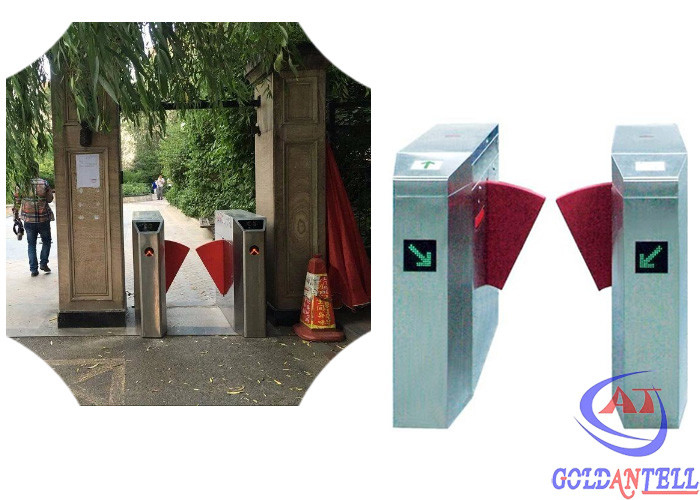

Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card

Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card
Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card

Large Image :  Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-212
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inside carton outside wooden case or crate
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Flap Barrier Gate Size: 1200/1400*280*990mm
Time To Work After Power On: 3 Seconds Material: Stainless Steel
Pass Speed: 30-4 Persons/min Interface: RS485, TCP/IP
Working Temperature: -20~+75 °C Arm Length: 260mm
Thick Of Steel: 1.5mm Or Custom Design Power Supply: 220~240 V(AC)
High Light:

Flap Barrier Turnstile

,

automatic flap barrier



Automatic Flap Barrier Gate Flap Turnstile with Fingerprint Ticket or IC Card



Flap Barrier Gate Technical parameters

1 . Material : domestic standard 304# stainless steel

2 . Working voltage : AC220±10%V 50±10%HZ

3 . Size : 1200/1400mm (L) * 280mm (W) * 990mm (H)

4 . Passage width : 550--600mm

5 . Drive motor : DC24V brush motor

6 . Retractable arm length : 260 mm

7 . Working environment : -10℃~70℃

8 . Direction : single or bi-directional (optional)

9 . Pass speed : 40 persons/min (open), 25-30 persons/min (closed)

10 . Communication interface : standard RS485 interface, distance ≤1200m

11 . single motor (suitable for single passageway and multiple passageway)

12 . Double motors (suitable for multiple passageways)



Standared function &features

1 . equipment appearance is made of stainless steel plate with cold bending technology, no clearance welding. It is beautiful modeling and rust-proof and durable.
2  . the appearance is like a ship with stainless material
3  . he material of the whole case is stainless, and the width is 2mm.
4 . there is night light alarm device on the wing gate.

5 . the material of the wing gate is transparent glass pane. And you can freely set logo on it. With the matched night light device, they combined a beautiful view.
6 . adopted 6 pairs infrared device or light curtain to stop following, distinguishing direction, preventing touch, and alarm function.

7 . with UPS battery in itself, when the power cut off suddenly, it close automatic.
8 . humanized status identification can distinguish the status of the equipment operation.
9 . adopted the standard electrical interface, this system can integrated many reader of magnetic card, the bar code ,card, ID card, IC card in this equipment.
10 . This system has the emergency measures to ensure the channel unimpeded, for staff evacuation in time.



Extended Function

1

LED indicator light
2 Voice Prompt Function
3 Sound and light alarm prompt functions
4 Box house can lengthen, telescopic arm color can choose
5 Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
6 Normally open or closed can be adjust to meet the requirements of the different place
7 Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately



Goldantell product introduction and application

Goldantell smart flap turnstile is a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier.

This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.



About the package
1 . If with access control system, need closed wooden box packing.
2 . Without the access control system, two ways for your choice: crate and closed wooden box.



About access control system

1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.

2 . ESD tester system and function.

3 .support special function: counter, coin- operation.

All this customize according to your demand

Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card 0



Goldantell more flap barrier gate to choice

Automatic Flap Barrier Gate Flap Turnstile With Fingerprint Ticket Or IC Card 1



Goldantell Competitive Advantage

1 . More than 9 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2 . We can provide not only product, but also system software management.Save your time and cost.

3 . About after sales problem :
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged within1 year(exclusion of human factors ),we will send you spare parts by fastest express,you no need bear any fee.
4 . Friendly and professional customer service people help you in 16 hours.
