Product Details:
Payment & Shipping Terms:
|
Product Name: | Flap Barrier Gate | Size: | 1200/1400*280*990mm |
---|---|---|---|
Package Size: | 1280/1480*370*1070mm | Material: | Standared 304 Stainless Steel |
Pass Speed: | 30-40 Persons/min | Interface: | RS485, TCP/IP |
Working Temperature: | -15~+75 °C | Arm Length: | 260 |
Thick Of Steel: | 1.5mm Or Custom Design | Power Supply: | 220~240 V(AC) |
Highlight: | Flap Barrier Turnstile,automatic flap barrier |

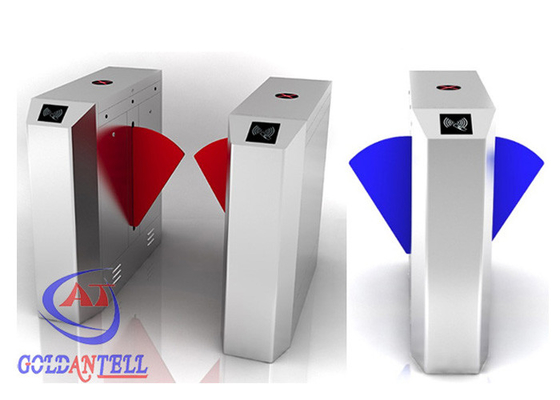

CE Approved Alarm Retractable Flap Barrier Gate , access control barrier with IR Sensor
Flap Barrier Gate Technical parameters
1 . Material : domestic standard 304# stainless steel
2 . Working voltage : AC220±10%V 50±10%HZ
3 . Size : 1200/1400mm (L) * 280mm (W) * 990mm (H)
4 . Passage width : 550--600mm
5 . Drive motor : DC24V brush motor
6 . Retractable arm length : 260 mm
7 . Direction : single or bi-directional (optional)
8 . Working environment : -10℃~70℃
9 . Pass speed : 40 persons/min (open), 25-30 persons/min (closed)
10 . Communication interface : standard RS485 interface, distance ≤1200m
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);Double motors (suitable for multiple passageways)
Standared function &features
1 . Equipment appearance is made of stainless steel plate with cold bending technology, no clearance welding. It is beautiful modeling and rust-proof and durable.
2 . The appearance is like a ship with stainless material
3 . The material of the whole case is stainless, and the width is 2mm.
4 . Here is night light alarm device on the wing gate.
5 . The turnstile will closed the door when somebody enter the gate illegal, tailgating or break into negative direction gate.
6 . Before received the open signal, the turnstile will lock automatically
7 . Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate,meet the fire protection needs
8 . Infrared reset function & Infrared induction clamp function
(Optional:3 pairs or 5 pairs Infrared)
9 . adopted the standard electrical interface, this system can integrated many reader of magnetic card, the bar code ,card, ID card, IC card in this equipment.
Extended Function
1 |
LED indicator light |
2 | Voice Prompt Function |
3 | Sound and light alarm prompt functions |
4 | Box house can lengthen, telescopic arm color can choose |
5 | Normally open or closed can be adjust to meet the requirements of the different place |
6 | Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared) |
7 | Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately |
Goldantell product introduction and application
Goldantell smart flap turnstile is a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier.
This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
About the package
1 . If with access control system, need closed wooden box packing.
2 . Without the access control system, two ways for your choice: crate and closed wooden box.
About access control system
1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2 . ESD tester system and function.
3 .support special function: counter, coin- operation.
All this customize according to your needs.
Goldantell Competitive Advantage
1 . More than 9 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2 . We can provide not only product, but also system software management.Save your time and cost.
3 . About after sales problem :
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged within1 year(exclusion of human factors ),we will send you spare parts by fastest express,you no need bear any fee.
4 . Friendly and professional customer service people help you in 16 hours.
