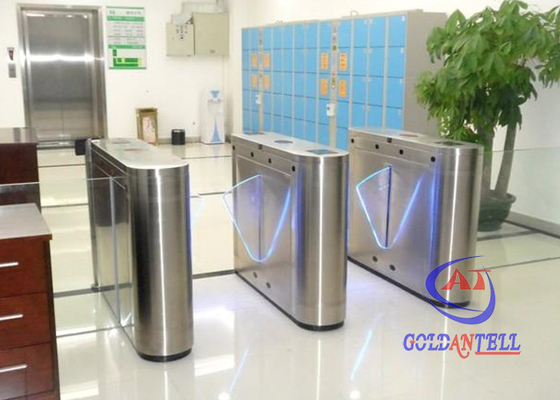

Smart flap barrier turnstile single or bi-directional optional for station airport

Smart flap barrier turnstile single or bi-directional optional for station airport
Smart flap barrier turnstile single or bi-directional optional for station airport Smart flap barrier turnstile single or bi-directional optional for station airport

Large Image :  Smart flap barrier turnstile single or bi-directional optional for station airport

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Model Number: GAT-218
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Contact Now
Detailed Product Description
Certification: CE/ROHS/FCC/SGS/IS9001 Product Name: Smart Flap Barrier Turnstile Single Or Bi-directional Optional For Station Airport
Motor: DC24V Solenoid Valve Housing Material: Domestic Standard 304# Stainless Steel
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Size: 1200*280*980mm
Clear Passage Width: 600mm Time Of Opening:: 0.6 Second
Service Life: 3000,000 Times
High Light:

Flap Barrier Turnstile

,

automatic flap barrier



Smart flap barrier turnstile single or bi-directional optional for station airport



Flap Barrier Gate Specifications:




Item


GAT-218-1( single motor )
GAT-218-2( double motors )



Working voltage:



AC220±10%V 50±10%HZ


Time of opening:



0.6 second


Passage width:



≤600mm


Pass speed:



  40 persons/min (open), 25-30 persons/min (closed)


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Input interface:



RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button



Communication interface



RS485/232



 Number of led lamp





1pcs or 3 pcs


 Description:



  •  Anti-illegal in, anti-intrusion, auto close for reverse direction.
  •  Anti-collision, gate closes when no valid signal is given.
  •  Gates can be synchronous
  • auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
  • Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
  • Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
  •  One way or two way control
  • Unit can be controlled and administered by remote control
  •  working method can be set by the buttons on the main panel
  •  This model is double wing flap gate, low noise, smaller casing, save space
  •  Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working        automatically. Reset again after a default delay, the force 2Kg.



Competitive Advantage:



1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom       package.

2. we can provide not only product, but also system software management.Save your time and cost.

3. Special service from Goldantell:

    For repairing,no need you return back product,only need you take a video,our engineer will instruct           you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need       bear any fee.

4. Friendly and professional customer service people help you in 16 hours.





package detail:



1. One pair need two packages.
2. With access control system, need the closed wooden box packing.
3. Without the access control system, two ways for your choice: crate and closed wooden box.




application:



Entertainment Places Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym
Public Places Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings.
Business Organizations

Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance




Smart flap barrier turnstile single or bi-directional optional for station airport 0Smart flap barrier turnstile single or bi-directional optional for station airport 1


Tag:

Flap Barrier Turnstile,

automatic flap barrier,

Flap turnstile
