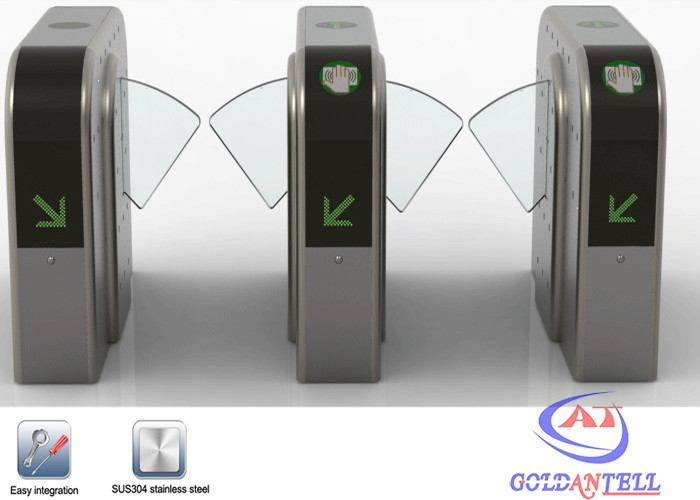

DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments

DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments
DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments

Large Image :  DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-224
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: DC24V Retractable Flap Barrier Gate Wirh Card Reader Identification Equipments Motor: DC24V Solenoid Valve
Housing Material: Domestic Standard 304# Stainless Steel Certification: CE/ROHS/FCC/SGS/IS9001
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Size: 1200*280*980mm
Time Of Opening:: 0.6 Second Work Environment: Indoor And Outdoor (shelter)
Passage Width: 600mm
Highlight:

Flap Barrier Turnstile

,

automatic flap barrier

DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments


Flap Barrier Gate Specifications:


Item


GAT-224-1( single motor )
GAT-224-2( double motors )




Working voltage:



AC220±10%V 50±10%HZ


Time of opening:



0.6 second


Passage width:



≤600mm


Pass speed:



  40 persons/min (open), 25-30 persons/min (closed)


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Input interface:



RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button



Communication interface



RS485/232


Support



operating video& Instruction will be sent to clients to help them better use the machines



Type



Retractable Flap Turnstile


function:


1. Anti-illegal in, anti-intrusion, auto close for reverse direction.
2. Anti-collision, gate closes when no valid signal is given.
3. Gates can be synchronous
4. auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
5. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
6. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
7. One way or two way control
8. Unit can be controlled and administered by remote control

9. working method can be set by the buttons on the main panel
10. This model is double wing flap gate, low noise, smaller casing, save space


Extensible functions:


1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5. Light, sound alarm


System Integration:


Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.




 control system:



access control system


access control system: fingerprint/ face recognition/
card reader/ QR code/ barcode ticket system.



charge management system


counter, coin- operation.


support special function


ESD tester system and function



application:

 Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School, Subway Station,Bus Station,Airports,Hoverport, Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management
