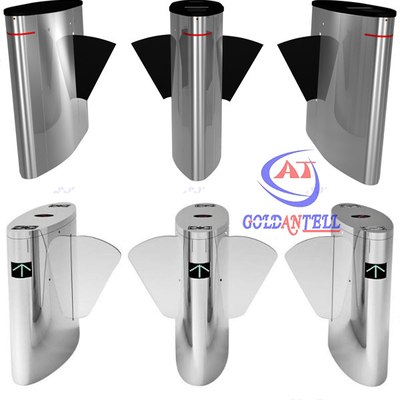

Smart card rfid reader flap barrier with acrylic glass wing in access remote control

Smart card rfid reader flap barrier with acrylic glass wing in access remote control
Smart card rfid reader flap barrier with acrylic glass wing in access remote control Smart card rfid reader flap barrier with acrylic glass wing in access remote control

Large Image :  Smart card rfid reader flap barrier with acrylic glass wing in access remote control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-223
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Smart Card Rfid Reader Flap Barrier With Acrylic Glass Wing In Access Remote Control Motor: DC24V Solenoid Valve
Housing Material: Domestic Standard 304# Stainless Steel Certification: CE/ROHS/FCC/SGS/IS9001
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Size: 1200*280*980mm
Clear Passage Width: 600mm Time Of Opening:: 0.6 Second
Service Life: 3000,000 Times
Highlight:

Flap Barrier Turnstile

,

automatic flap barrier



Smart card rfid reader flap barrier with acrylic glass wing in access remote control

Flap Barrier Gate Specifications:



Item


GAT-223-1( single motor )
GAT-223-2( double motors )



Working voltage:


AC220±10%V 50±10%HZ

Time of opening:


0.6 second

Passage width:


≤600mm

Pass speed:


40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down:


10 seconds

Direction:


single or bi-directional (optional)

Transit speed


30-40 people/minute

Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Communication interface


RS485/232

Support


operating video& Instruction will be sent to clients to help them better use the machines


Type


Retractable Flap Turnstile


 Description:


1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control



 control system:



access control system

access control system: fingerprint/ face recognition/
card reader/ QR code/ barcode ticket system.


charge management system


counter, coin- operation.

 support special function


ESD tester system and function



application:


Entertainment PlacesMovie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym


Public Places

Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings.
Business Organizations

Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance


Smart card rfid reader flap barrier with acrylic glass wing in access remote control 0
Smart card rfid reader flap barrier with acrylic glass wing in access remote control 1
