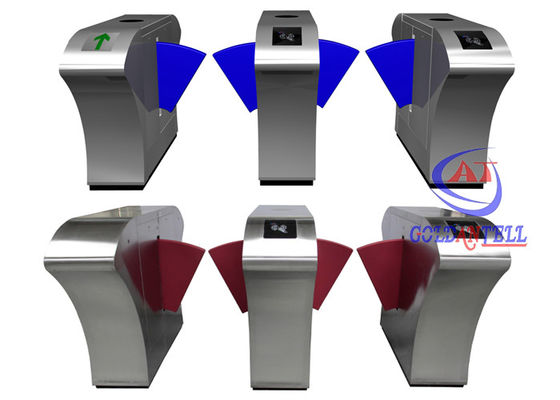

Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance

Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance
Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance

Large Image :  Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-214
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Automatic Flap Barrier Turnstile For Enterprise’s Entrance And Exit Attendance Working Voltage:: AC220±10%V 50±10%HZ
Transit Speed: 30-40 People/minute Arm Width: 265m
Work Environment: Indoor Or Outdoor Housing Material: Domestic Standard 304# Stainless Steel
Arm Material: Acrylic Or Soft Arm Communication Interface: Standard RS485 Interface, Distance ≤1200m
Certification: CE/ROHS/FCC/SGS/IS9001
Highlight:

Flap Barrier Turnstile

,

automatic flap barrier



Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance


Flap Barrier Gate Specifications:




Item


GAT-214-1( single motor )
GAT-214-2( double motors )




Working voltage:



AC220±10%V 50±10%HZ


Retractable arm length:



265mm


Time of opening:



0.6 second


Passage width:



≤600mm


Pass speed:



  40 persons/min (open), 25-30 persons/min (closed)


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Transit speed



30-40 people/minute


Input interface:



+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA




Communication interface



RS485/232




Function:


1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control



 Extensible functions:



1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm



application:

Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance 0


package detail:


Automatic waist height Flap Barrier Gate for Enterprise ’ s Entrance and Exit Attendance 1
