Security entrance Flap Barrier Gate / Fingerprint full height turnstiles

  • Security entrance Flap Barrier Gate / Fingerprint full height turnstiles
  • Security entrance Flap Barrier Gate / Fingerprint full height turnstiles
  • Security entrance Flap Barrier Gate / Fingerprint full height turnstiles
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-210
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Security Entrance Flap Barrier Gate Barrier In RFID And Fingerprint Remote Control Transit Speed 30-40 People/minute
Working Movement DC24V Solenoid Valve Arm Width 265m
Housing Material Domestic Standard 304# Stainless Steel Arm Material Acrylic Or Soft Arm
Direction Direction: Single Or Bi-directional (optional) Close And Open Time 0.6S
Reset Time After Break Down 10 Seconds Pass Speed 40 Persons/min (open), 25-30 Persons/min (closed)
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

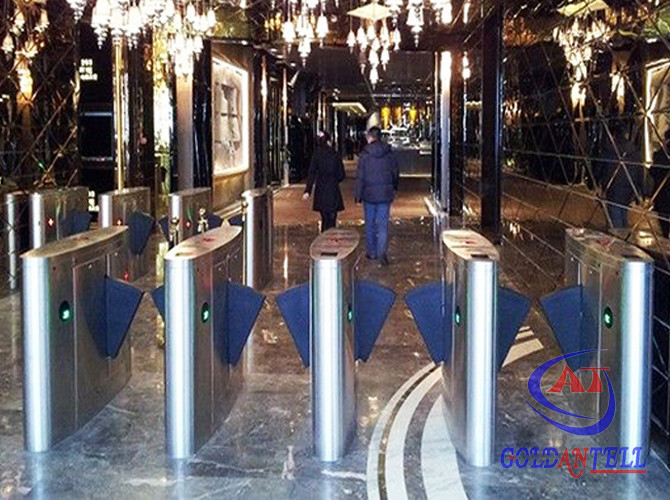

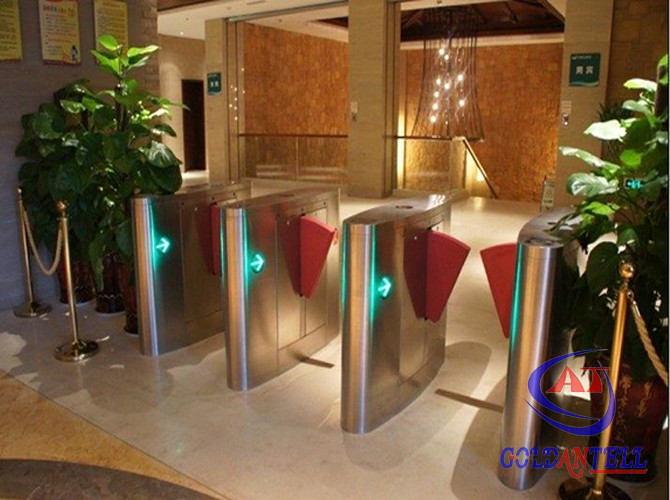

Security entrance Flap Barrier Gate / Fingerprint full height turnstiles


Flap Barrier Gate Specifications:




Item


GAT-210-1( single motor )
GAT-210-2( double motors )



Working voltage:



AC220±10%V 50±10%HZ


Retractable arm length:



265mm


Direction:




 single or bi-directional (optional)


Pass speed:



  40 persons/min (open), 25-30 persons/min (closed)


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Transit speed



30-40 people/minute



Compatible





RFID Reader&Fingerprint Reader ,Coin acess,

QR code reader,Bar code System,ESD Tester Access Control,

remote button






Function:



1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control





Extensible functions:



1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm



application:

Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School, Subway Station,Bus Station,Airports,Hoverport, Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control


package detail:



Security entrance Flap Barrier Gate / Fingerprint full height turnstiles 0



company profile:



Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience

Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.



Security entrance Flap Barrier Gate / Fingerprint full height turnstiles 1
