Office buliding access turnstile barrier with strict Pedestrian control counter system

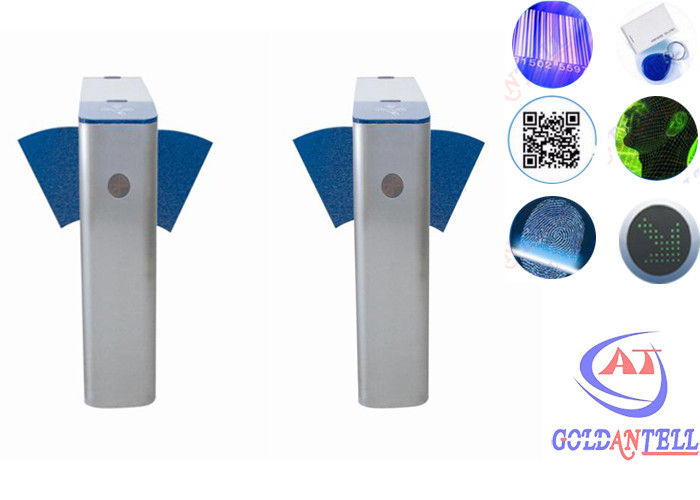

Large Image : Office buliding access turnstile barrier with strict Pedestrian control counter system

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-208

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Flap Barrier Turnstile For Office Buliding With Strict Pedestrian Control Counter System	Working Voltage::	AC220±10%V 50±10%HZ
Transit Speed:	30-40 People/minute	Working Movement:	DC24V Solenoid Valve
Arm Width:	265m	Housing Material:	Domestic Standard 304# Stainless Steel
Arm Material:	Acrylic Or Soft Arm	Direction:	Direction: Single Or Bi-directional (optional)
Close And Open Time:	0.6S	Motor:	24V DC Brush
Highlight:	Flap Barrier Turnstile , automatic flap barrier

Office buliding access turnstile barrier with strict Pedestrian control counter system

Flap Barrier Gate Specifications:

Item	GAT-204-1( single motor ) GAT-204-2( double motors )
Working voltage:	AC220±10%V 50±10%HZ
Retractable arm length:	265mm
Passage width:	≤600mm
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
Transit speed	30-40 people/minute
Communication interface	RS485/232
Compatible	RFID Reader&Fingerprint Reader ,Coin acess, QR code reader,Bar code System,ESD Tester Access Control, remote button

Features of Flap Barrier Turnstile:

1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

Flap Turnstile Introduction&Specification:

rfid turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management. Circular flap gate is usually used in bank lobby, office building, fitness club, school, it prevents unauthorized people to enter the restricted areas, Circular flap gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.

application:

package detail:

Tag:

Contact Person: Charlene Lu

Tel: 86 18025437918

Fax: 86-755-27209118
