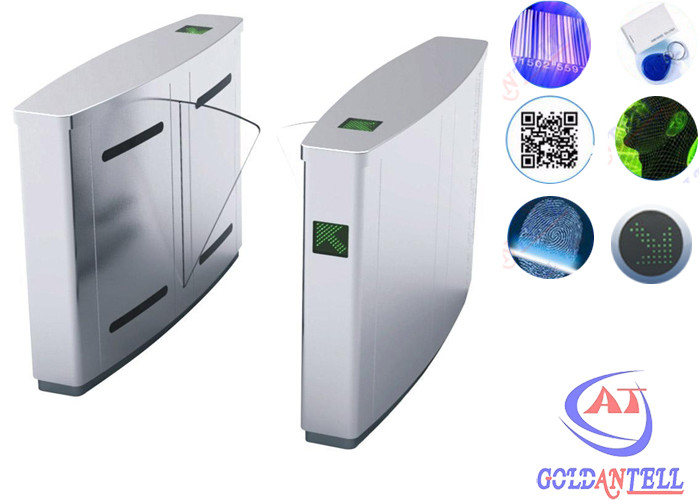

304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door

  • 304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door
  • 304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-204
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 Stainless Steel Retractable-wing Flap Barrier Entrance Door In For Office Buliding Working Voltage AC220±10%V 50±10%HZ
Transit Speed 30-40 People/minute Service Life 3000,000 Times
Working Movement DC24V Solenoid Valve Arm Width 265m
Work Environment Indoor Or Outdoor Housing Material Domestic Standard 304# Stainless Steel
Arm Material Acrylic Or Soft Arm
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door


Flap Barrier Gate Specifications:


Item


GAT-204-1( single motor )
GAT-204-2( double motors )



Working voltage:



AC220±10%V 50±10%HZ


Retractable arm length:



265mm


Time of opening:



0.6 second


Passage width:



≤600mm


Pass speed:



  40 persons/min (open), 25-30 persons/min (closed)


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Transit speed



30-40 people/minute


Input interface:



+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA



Communication interface



RS485/232




Features of Flap Barrier Turnstile:


1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.






 introdution of flap barrier gate:


Goldantell smart flap turnstile (flap automatic gate) is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...

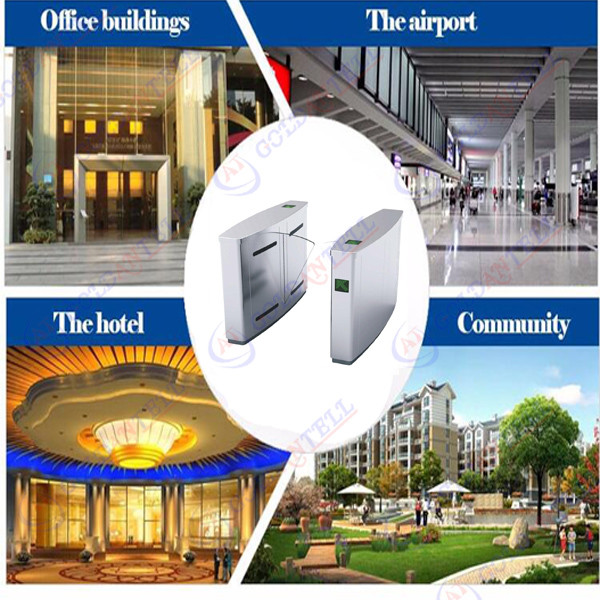

application:

304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door 0


Control system:

304 stainless steel Retractable wing flap Pedestrian Barrier Gate / entrance door 1
