Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp

  • Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp
  • Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-215
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Facility Security Retractable Flap Barrier Gate With Infrared Induction Clamp Function Working Voltage AC220±10%V 50±10%HZ
Communication Port RS485 ,TCP/IP Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Materal 304 Stainless Steel/316 Stainless Steel Transit Speed 30-40 People/minute
Service Life 3000,000 Times Working Movement DC24V Solenoid Valve
Arm Width 265m Work Environment Indoor Or Outdoor
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description



Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp



Flap Barrier Gate Specifications:




Item



GAT-203-1( single motor )
GAT-203-2( double motors )





Top Cover:





Acrylic or stainless steel



Working voltage:





AC220±10%V 50±10%HZ



Retractable arm length:





265mm



Time of opening:





0.6 second



Passage width:





≤600mm



Pass speed:





  40 persons/min (open), 25-30 persons/min (closed)



Reset time after break down:





10 seconds



Direction:





single or bi-directional (optional)



Drive motor:





DC 24 V brush motor



Sensor beams:





5 pairs for 1 complete lane



Input interface:





+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA






Features of Flap Barrier Turnstile:



1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control






Advantages



  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Convenient installation and maintenance.
  • Malfunction self-detection. Which is easy for operation and maintenance.
  • Audible and visual alarm in case of unauthorized access
  • Friendly and professional customer service people help you in 16 hours
  • we can provide not only product, but also system software management.





detial profile:

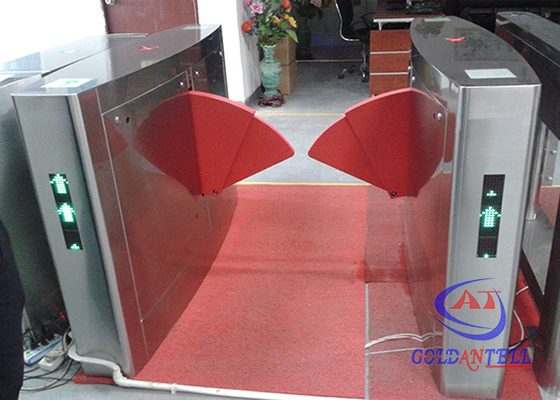

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp 0





package detial:



Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp 1
