Bus station RFID Turnstile Flap Barrier Gate with counter system QR code / Bar code reader

Large Image : Bus station RFID Turnstile Flap Barrier Gate with counter system QR code / Bar code reader

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-209

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Bus Station RFID Flap Barrier Gate With Counter System And QR Code / Bar Code Reader	Working Voltage::	AC220±10%V 50±10%HZ
Gross Weight:	90KG	Communication Port:	RS485 ,TCP/IP
Passage Width::	≤600 Mm	Compatible:	RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Materal:	304 Stainless Steel/316 Stainless Steel	Transit Speed:	30-40 People/minute
Service Life:	3000,000 Times
Highlight:	pedestrian turnstile gate , waist high turnstiles

Bus station RFID Flap Barrier Gate with counter system and QR code / Bar code reader

Flap Barrier Gate Specifications:

GAT-203-1( single motor )
GAT-203-2( double motors )

Housing material:

304 stainless steel/316 stainless steel

Working voltage:

AC220±10%V 50±10%HZ

Retractable arm length:

265mm

Time of opening:

0.6 second

Passage width:

≤600mm

1200mm /1400mm(L) * 280mm (W) * 980mm (H)

Reset time after break down:

10 seconds

Direction:

single or bi-directional (optional)

Drive motor:

DC 24 V brush motor

Number of led lamp:

1pcs or 3 pcs

Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA

Features of Flap Barrier Turnstile:

1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control

application place :

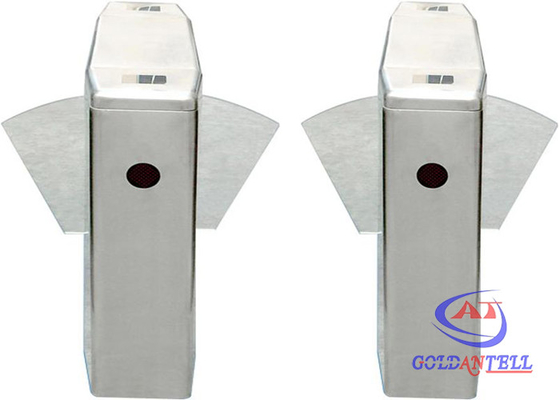

Bus station RFID Turnstile Flap Barrier Gate with counter system QR code / Bar code reader 0

Advantages

Matt finished housing surface, dustproof and rainproof design for outdoor use.
Highly integrated solenoid mechanism, 100% heavy duty operation.
Drop arm when power off, for emergency use.
Convenient installation and maintenance.
Malfunction self-detection. Which is easy for operation and maintenance.
Audible and visual alarm in case of unauthorized access
Friendly and professional customer service people help you in 16 hours
we can provide not only product, but also system software management.

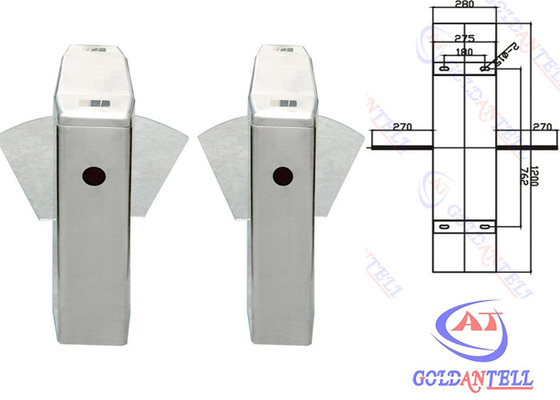

Bus station RFID Turnstile Flap Barrier Gate with counter system QR code / Bar code reader 1
