90CM width Sliding Card Double Wing access control barriers with automatic sensor

  • 90CM width Sliding Card Double Wing access control barriers with automatic sensor
  • 90CM width Sliding Card Double Wing access control barriers with automatic sensor
  • 90CM width Sliding Card Double Wing access control barriers with automatic sensor
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-233
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Communication Port RS485 ,TCP/IP Application Movie Or Fitness Certer Or Hotel Or Restaurant Entrance
Product Name Width 900mm Double Wing Turnstile Product Size 1200*320*1000mm
Passway Width In 900mm (can Be Custom According To Your Requirement) N.W 65kg
G.W 70kg Material 304stainless Steel
Highlight

pedestrian turnstile gate

,

turn style gate
Leave a Message
Product Description

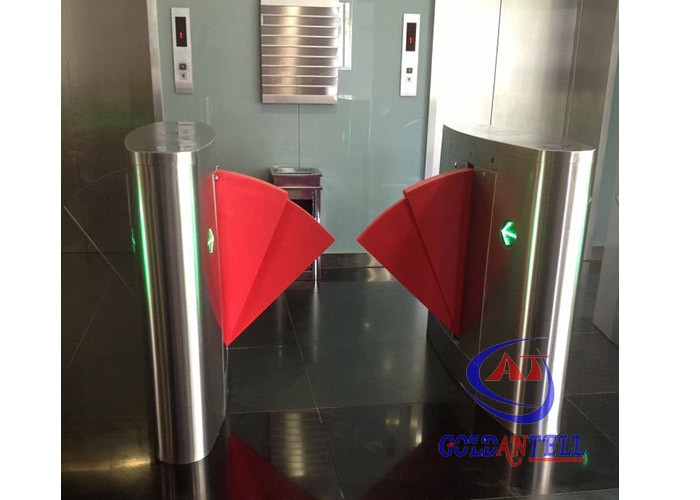

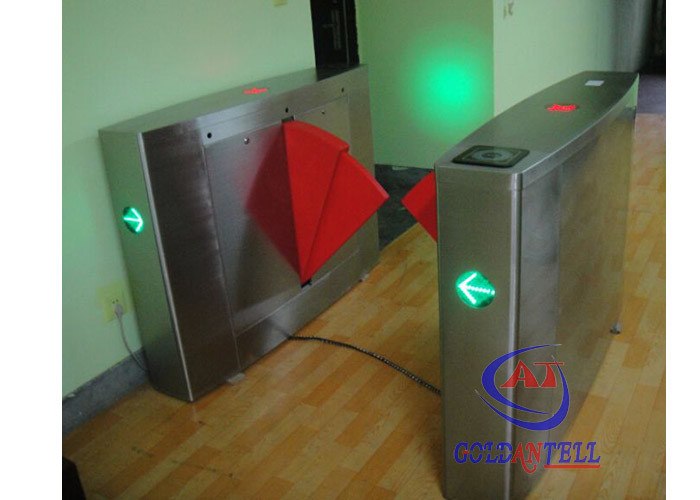

90CM Width Sliding Card Double Wing Access Control Barriers with Automatic Sensor
Product Introduction
  • Installation & Application: Suitable for subways, airports, stations, libraries, movie theaters, fitness halls, clubs, swimming pools, and gyms
  • Control System: Compatible with RFID cards, fingerprint systems, facial recognition systems, and other control systems
  • Special Feature: Double wing design provides a passway width of 900mm
Specification
Technical Parameter Value
Working voltage AC220±10%V, 50±10%HZ
Pass width 600-900 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Working environment Indoor/outdoor (with tent) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% (condensation free)
90CM width Sliding Card Double Wing access control barriers with automatic sensor 0
Flap gate of single wing vs. Flap gate of double-wings
90CM width Sliding Card Double Wing access control barriers with automatic sensor 1
Design Show
90CM width Sliding Card Double Wing access control barriers with automatic sensor 2
Shipping & Packing
  • One pair requires two packages
  • Without access control system: choice of crate or closed wooden box
  • With access control system: requires closed wooden box packing
Function Description
  • Collision avoidance function: arm opens when encountering resistance to protect internal transmission
  • Automatic reset function: cancels authority after set time (adjustable 1-60s) if gate isn't passed
  • Optional infrared reset function (4 or 6 pairs infrared)
  • Infrared induction clamp function (4 pairs infrared)
  • Compatible with various systems: access control, consumption, biometric recognition, ESD
  • Bidirectional operation (entry and exit from one pair)
  • Working conditions adjustable via main control board
  • Anti-pinch function: mechanical and infrared protection
  • Automatic closure for illegal entry, tailgating, or negative direction break-in
  • Automatic locking before receiving open signal
Competitive Advantage
  • ODM/OEM services available including custom product design, logos, packaging, and sizes
  • Comprehensive support with turnstiles and various access control systems
  • Professional customer service available 16 hours/day
  • Excellent after-sales service: remote troubleshooting and free replacement of damaged parts within 1 year
