Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

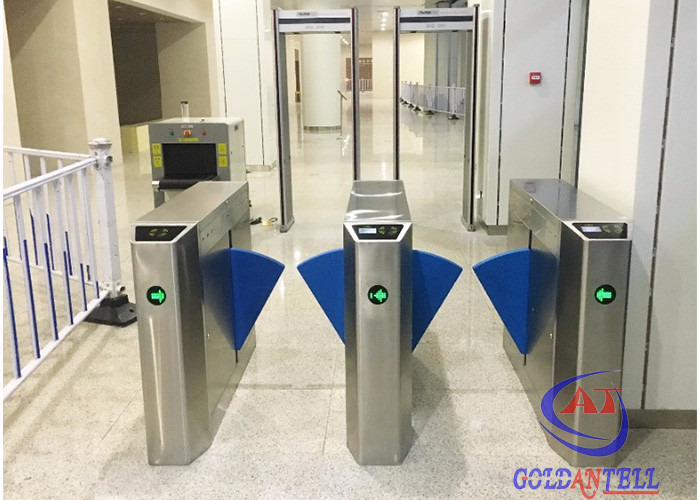

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System
Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System

Large Image :  Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-203
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inside carto,outside wooden case or crate
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 1,000pcs per month
Detailed Product Description
Product Name: Flap Barrier Gate Size: 1200/1400*280*990mm
Time Of Opening/closing: 0.6 Second Material: 304 Stainless Steel
Pass Speed: 30-40 Persons/min Interface: RS485, TCP/IP
Direction: Single Or Bi-directional (optional) Arm Length: 260mm
Thick Of Steel: 1.5mm Or Custom Design Power Supply: 220~240 V(AC)
Highlight:

Flap Barrier Turnstile

,

automatic flap barrier

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System





Technical parameters

Material

domestic standard 304# stainless steel
Working voltage AC220±10%V 50±10%HZ
Drive motor DC24V brush motor
Size 1200mm(L) * 280mm (W) * 990mm (H)
Retractable arm length 260 mm

Passage width

≤600mm

Relative humidity

≤90% coagulation free

Direction single or bi-directional (optional)
Working environment indoor/outdoor (with a tent over) -10℃~70℃

Reset time after break down

10 seconds

Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Communication interface standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Function &features

1 . Alarm function
2 . Anti-pinch function
3 . Automatic Reset Functions
4 . Infrared reset function & Infrared induction clamp function (Optional:3 pairs or 5 pairs Infrared)
5 . Turnstile can setting the working condition by press the button of main control board.
6 .This model is newest second generation of movement (mute), soft baffle (PU mold)
7 . The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
8 .The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)



Customized GAT-203 design draft

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System 0



Extended Function

1 . LED indicator light
2 . Box house can lengthen, telescopic arm color can choose
3 . Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4 . Normally open or closed can be adjust to meet the requirements of the different place.
5 . Sound and light alarm prompt functions



Classified into two kinds: single motor (suitable for single passageway and multiple passageway);Double motors (suitable for multiple passageways)



Suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System 1



Goldantell product introduction

This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...



About the package

1 . One pair need two packages.
2 . With access control system, need closed wooden box packing.
3 . Without the access control system, two ways for your choice: crate and closed wooden box.



About access control system

1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.

2 . ESD tester system and function.

3 .support special function: counter, coin- operation.



Goldantell Competitive Advantage

1 . More than 9 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2 . We can provide not only product, but also system software management.Save your time and cost.

3 . Friendly and professional customer service people help you in 16 hours.

4 . About after sales problem :
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged within1 year(exclusion of human factors ),we will send you spare parts by fastest express,you no need bear any fee.
