Product Details:
Payment & Shipping Terms:
|
Product Name: | Retractable Pedestrian Flap Barrier Gate With Rfid Reader Digital Door Lock | Working Voltage:: | AC220±10%V 50±10%HZ |
---|---|---|---|
Gross Weight: | 90KG | Communication Port: | RS485 ,TCP/IP |
Passage Width:: | ≤600 Mm | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Materal: | 304 Stainless Steel/316 Stainless Steel | Arm Width: | 265mm |
Highlight: | Flap Barrier Turnstile,automatic flap barrier |

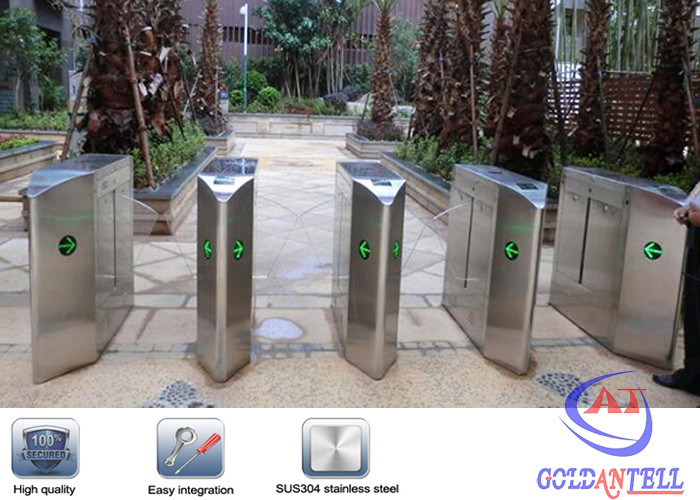

Pedestrian Flap Barrier Gate with digital door lock , Stadium Turnstile systems
Flap Barrier Gate Specifications:
Item |
GAT-203-1( single motor )
|
Housing material:
|
304 stainless steel/316 stainless steel |
Working voltage:
|
AC220±10%V 50±10%HZ |
Normal running life:
|
3 million |
Retractable arm length:
|
265mm |
Time of opening:
|
0.6 second |
Passage width:
|
≤600mm |
Input interface
|
Relay signal, 12V level signal |
Reset time after break down:
|
10 seconds |
Direction:
|
single or bi-directional (optional) |
Drive motor:
|
DC 24 V brush motor |
Working environment:
|
indoor/outdoor (with a tent over) |
size
|
1200*280*980mm |
Features of Flap Barrier Turnstile:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop
working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5
seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access
controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
12. Counter function (optional)
13. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
14. Anti-illegal in, anti-intrusion, auto close for reverse direction
Application Areas
