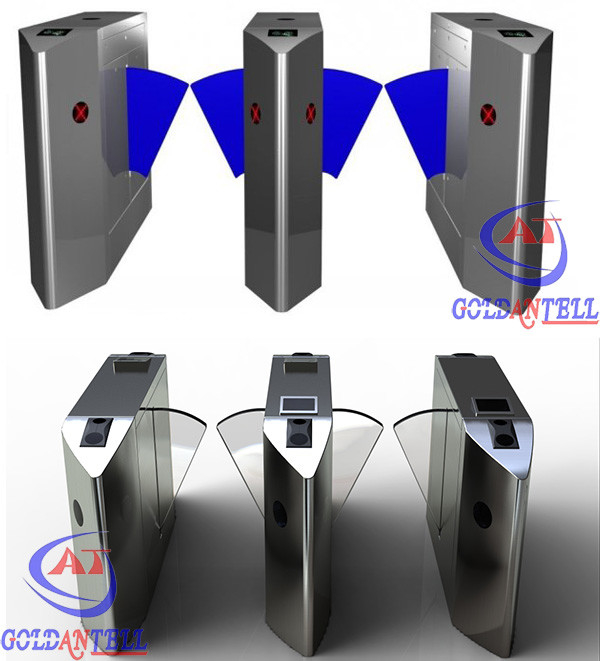

RS485 Flap Wing Barrier Double Turnstile Subway 30-40 Persons / Min

RS485 Flap Wing Barrier double turnstile subway 30-40 persons / min

Technical parameters

Standared function &features

1 . Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms    will be set locked.turnstile can check by itself when it is have problem, it is good for customer to maintain and use

2 . Turnstile can setting the working condition by press the button of main control board.

3 . The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

4 . Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed).

5 . The turnstile will closed the door when somebody enter the gate illegal, tailgating or break into negative direction gate.

6 . Before received the open signal, the turnstile will lock automatically

7 . Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate,meet the fire protection needs

8 . Infrared reset function & Infrared induction clamp function

(Optional:3 pairs or 5 pairs Infrared)

Goldantell product GAT-201 design draft

Extended Function

1 . LED indicator light

2 . Box house can lengthen, telescopic arm color can choose

3 . Infrared logical judgment function (you can choose 3 pairs or 5 pairs Infrared)

4. Voice Prompt Function

6 . Sound and light alarm prompt functions

5 . Normally open or closed can be adjust to meet the requirements of the different place.

7 . Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately

Classified into two kinds: single motor (suitable for single passageway and multiple passageway)；Double motors (suitable for multiple passageways)

Goldantell product introduction and application

Goldantell smart flap turnstile (block gate) is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

About the package

1 . One pair need two packages.
2 . With access control system, need closed wooden box packing.
3 . Without the access control system, two ways for your choice: crate and closed wooden box.

About access control system

1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.

2 . ESD tester system and function.

3 .support special function: counter, coin- operation.

All this customize according to your needs.

Goldantell Competitive Advantage

1 . More than 9 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2 . We can provide not only product, but also system software management.Save your time and cost.

3 . About after sales problem :
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged within1 year(exclusion of human factors ),we will send you spare parts by fastest express,you no need bear any fee.
4 . Friendly and professional customer service people help you in 16 hours.
