Pedestrian waist height turnstiles remote controls wireless alarm system

  • Pedestrian waist height turnstiles remote controls wireless alarm system
  • Pedestrian waist height turnstiles remote controls wireless alarm system
  • Pedestrian waist height turnstiles remote controls wireless alarm system
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-203
Minimum Order Quantity 1pc
Price negotiation

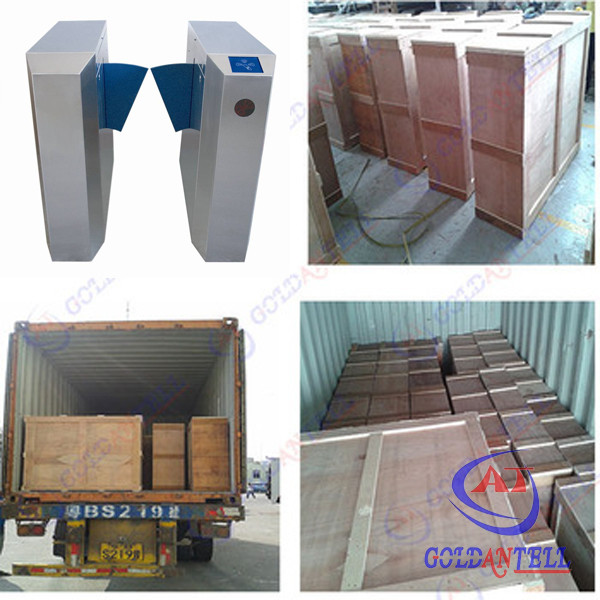

Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pedestrian Flap Barrier Gate Size Of Product 1200*300*1000mm
Working Voltage AC220±10%V 50±10%HZ Gross Weight 90KG
Communication Port RS485 ,TCP/IP Passage Width ≤600 Mm
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Materal 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

Pedestrian waist height turnstiles remote controls wireless alarm system



Automated Security Gates



Flap Barrier Gate Specifications:




Item



GAT-203-1( single motor )
GAT-203-2( double motors )





Housing material:





304 stainless steel/316 stainless steel



Working voltage:





AC220±10%V 50±10%HZ



Normal running life:





3 million



Retractable arm length:





280 mm



Time of opening:





0.6 second



Passage width:





≤600mm



Size





 1200mm /1400mm(L) * 280mm (W) * 980mm (H)



Reset time after break down:





10 seconds



Direction:





single or bi-directional (optional)



Drive motor:





DC 24 V brush motor



Working environment:







indoor/outdoor (with a tent over)
-10℃～70℃



Input interface:





+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA






Features of Flap Barrier Turnstile:


 1. Fault detection and alarm functions, easy to use and maintenance.

 2. The running status can be programmed and controlled with the built-in keyboard on the main        board.

 3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

  working automatically within the prescribed time and reset again after the default delay (till fully reset).

 4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

 5. Synchronization functions (for dual gate equipment).

 6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5

     seconds), the system will cancel the authority of the current user automatically.

 7. Gate can be set as normally open or normally closed.

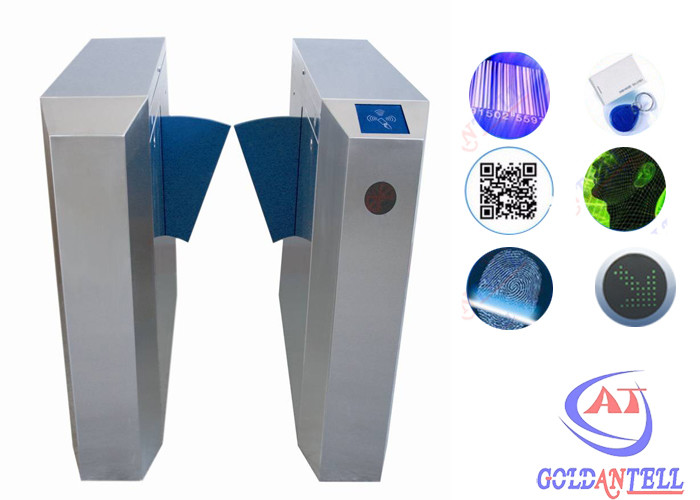

 8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access

     controller needed).

 9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.



11. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

12. Counter function (optional)





Application Areas



  • Government
  • Office building
  • Stadium
  • Factory
  • Gym/Stadium
  • Hotel
  • Banking
  • Tourism Sports
  • Exhibition
  • Hotel




Advantages



  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Compatible with other access control system.
  • Convenient installation and maintenance.
  • Malfunction self-detection. Which is easy for operation and maintenance.
  • Audible and visual alarm in case of unauthorized access
  • Friendly and professional customer service people help you in 16 hours
  • we can provide not only product, but also system software management.



Pedestrian waist height turnstiles remote controls wireless alarm system 0
