High Speed Steel Bi directional supermarket Turnstile RFID Card Reader with IR Sensor
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-205 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Material | 304 Stainless Steel/316 Stainless Steel | Size Of Product | 1200*300*1000mm |
|---|---|---|---|
| Net Weight | 75KG | Gross Weight | 85KG |
| Communication Port | RS485 ,TCP/IP | Application | Indoor&outdoor |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Product Name | Flap Gate With Fire Alarm System |
| Custom | Customer Logo , Customer Design | ||
| Highlight | Flap Barrier Turnstile,automatic flap barrier |
||
Product Description

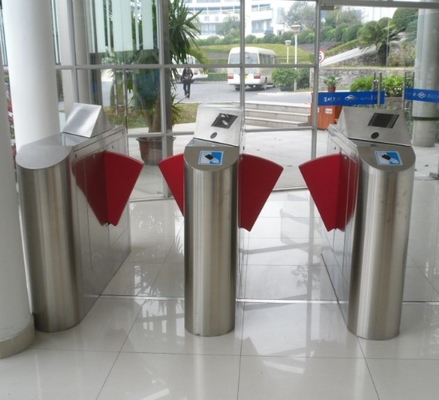

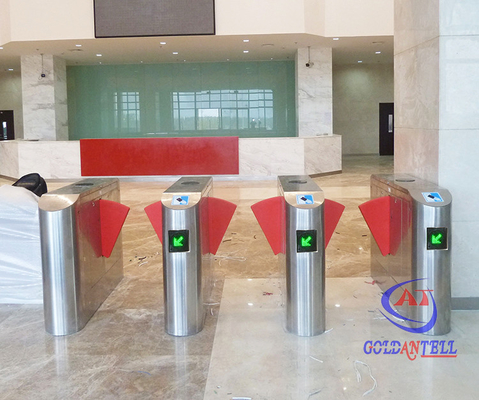

High Speed Steel Bi-directional Supermarket Turnstile RFID Card Reader with IR Sensor
Product Overview
Goldantell flap gate with fire alarm system and IR sensor is a high-tech product that provides intelligent management for passageways. This advanced solution represents an upgrade from traditional intelligent tripod turnstiles and swing barriers. Finely processed with comprehensive functionality and high-level performance, it is ideally suited for upscale neighborhoods, intelligent buildings, hotels, subway stations, ports, clubs, and similar environments.
Technical Specifications
| Item | GAT-218-1 (single motor) GAT-218-2 (double motors) |
|---|---|
| Name | Bridge type flap gate |
| Housing material | Domestic standard 304# stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Size | 1200/1400mm (L) × 280mm (W) × 990mm (H) |
| Retractable arm length | 280 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% condensation free |
Order Procedure
| Step | Process |
|---|---|
| 1 | Customer Inquiry |
| 2 | Quotes |
| 3 | To give orders |
| 4 | The next production orders |
| 5 | Business approval |
| 6 | Production Notification issued |
| 7 | Production starts |
| 8 | Inspection before shipment |
| 9 | The charter provides warehouse |
| 10 | Loading |
| 11 | Commissioned by the declaration |
| 12 | To obtain shipping documents |
| 13 | To prepare the relevant documents |
| 14 | Making the export contract, export commercial invoice, packing list and other documents |
Competitive Advantages
- More than 10 years powerful ODM/OEM ability, including product shape design, custom logo, and custom packaging
- Friendly and professional customer service available 16 hours per day
- Comprehensive solution including both product and system software management to save time and reduce costs
- Special Goldantell service: For repairs, no need to return products - simply provide a video and our engineers will provide instructions. If spare parts are damaged within 1 year, we will send replacements via fastest express at no cost to you
