Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel | Size Of Product: | 1200*300*1000mm |
---|---|---|---|
Net Weight: | 80KG | Gross Weight: | 90KG |
Communication Port: | RS485 ,TCP/IP | Application: | Indoor&outdoor |
Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Product Name: | Indoor Flap Barrier Turnstile |
Custom: | Customer Logo , Customer Design | ||
Highlight: | Flap Barrier Turnstile,automatic flap barrier |

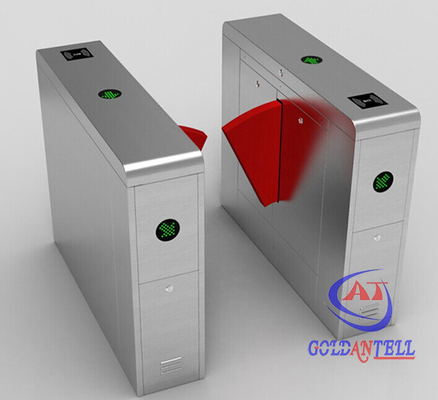

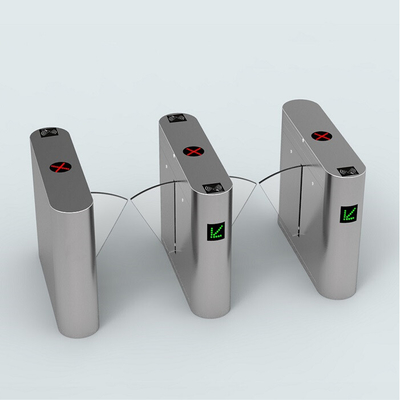

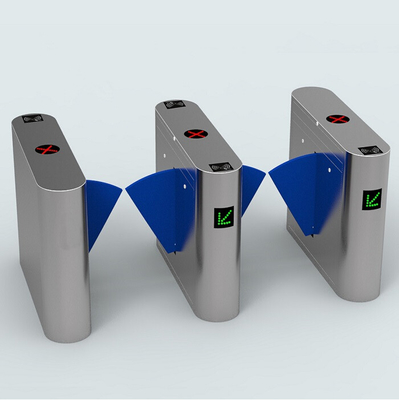

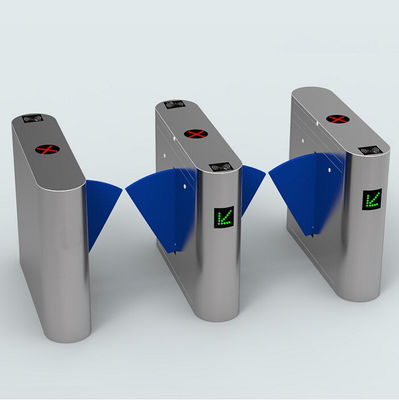

50w Indoor Outdoor Turnstile Web Based IP Biometric Acess
Automated Security Gates
Flap Barrier Gate Specifications:
Item |
GAT-226-1( single motor )
|
Name |
Bridge type sharp arc flap gate
|
Technical parameters
|
|
Housing material:
|
domestic standard 304# stainless steel |
Working voltage:
|
AC220±10%V 50±10%HZ |
Size:
|
1200/1400mm (L) * 300mm (W) * 1000mm (H) |
Retractable arm length:
|
260 mm |
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed) |
Passage width:
|
≤600mm |
Normal running life:
|
3 million |
Time of opening/closing:
|
0.6 second |
Time to work after power on:
|
3 seconds |
Reset time after break down:
|
10 seconds |
Direction:
|
single or bi-directional (optional) |
Drive motor:
|
DC 24 V brush motor |
Working environment:
|
indoor/outdoor (with a tent over) -10℃~70℃ |
Communication interface:
|
standard RS 485 interface, distance ≤1200m |
Input interface:
|
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Relative humidity:
|
≤90% coagulation free |
Advantage of Sinomatic Flap Barrier Turnstile:
Features of Flap Barrier Turnstile:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop
working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5
seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access
controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety
requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
