TCP IP Flap Barrier Gate Waist Height Stainless Steel Turnstiles Bidirectional
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-221 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Turnstiles | Size Of Product | 1200*300*1000mm |
|---|---|---|---|
| Net Weight | 80KG | Gross Weight | 90KG |
| Communication Port | RS485 ,TCP/IP | Application | Indoor&outdoor |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Product Name | Automatic Flap Barrier Gate |
| Custom | Customer Logo , Customer Design | ||
| Highlight | Flap Barrier Turnstile,automatic flap barrier |
||
Product Description

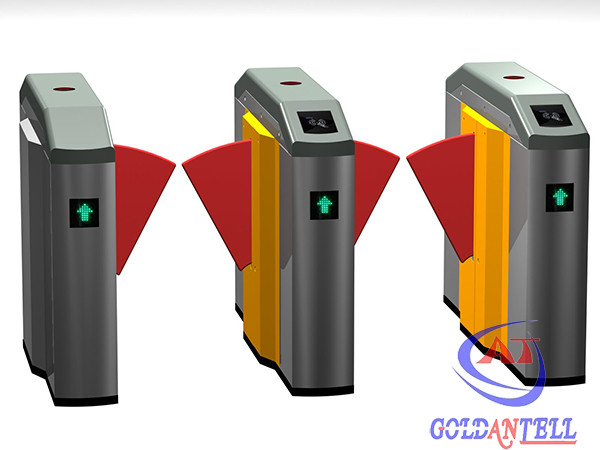

TCP IP Flap Barrier Gate Waist Height Stainless Steel Turnstiles
Bidirectional
Description of Stainless Steel Turnstile:
Goldantell flap gate turnstile is s a high- tech product which mainly provides
intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing
barrier. this product is finely processed with complete functions and high level, suitable for high- level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
Stainless Steel Turnstile Specifications:
| Item |
GAT-221-1( single motor ) GAT-221-2( double motors )
|
| Name |
Bridge type sharp arc flap gate
|
|
Technical parameters
|
|
| Housing material: |
domestic standard 304# stainless steel
|
| Working voltage: |
AC220±10%V 50±10%HZ
|
| Size: |
1200/1400mm (L) * 300mm (W) * 1000mm (H)
|
| Retractable arm length: |
260 mm
|
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed)
|
| Passage width: |
≤600mm
|
| Normal running life: |
3 million
|
| Time of opening/closing: |
0.6 second
|
| Time to work after power on: |
3 seconds
|
| Reset time after break down: |
10 seconds
|
| Direction: |
single or bi-directional (optional)
|
| Drive motor: |
DC 24 V brush motor
|
| Working environment: |
indoor/outdoor (with a tent over)
|
| Communication interface: |
standard RS 485 interface,
|
| Input interface: |
+12V level signal or pulse width>100 ms
|
| Relative humidity: |
≤90% coagulation free
|
Features:
The Tripod Turnstiles are very robust products able to function inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain
applications
1 . Security
Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
Mechanism cannot be forced
2 . Economic
Inactive arms do not hinder the passage
Simple to install
3 . Flexibility
Removable end covers for easy integration of any type of access control device
Numerous configurations covering all cases of pedestrian access control
FAQ:
Q:1. Can you install RFID card reader on the turnstile?
A: Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd
system,etc.
Q:2. How about the guarantee and after sale service?
A: We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services
who can speak fluent English language
Q:3. How long is the leading time?
A: For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
B: For special item, or need custom design package or logo, need 3-10 working days longer
Q:4. What is the payment terms?
A: TT,western union,L/C, Paypal, etc. our company already joined the trade assurance,it will highly protect
your order security.
Q:5. How do you send the product to me,how long?
A: For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
Q:6. Can you do OEM service?
We offer below OEM services:
1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
