Home ProductsFlap Barrier Gate

Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance

Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Facial recognition turnstiles wowed tenants. Synced with access cards seamlessly. Engineers even worked through Eid.

—— Ahmed Al-Farsi in The UAE

Precision gates sync with assembly robots. German-spec turnstile gates, Chinese speed. Zero warranty claims in 18 months

—— Klara Müller in German

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

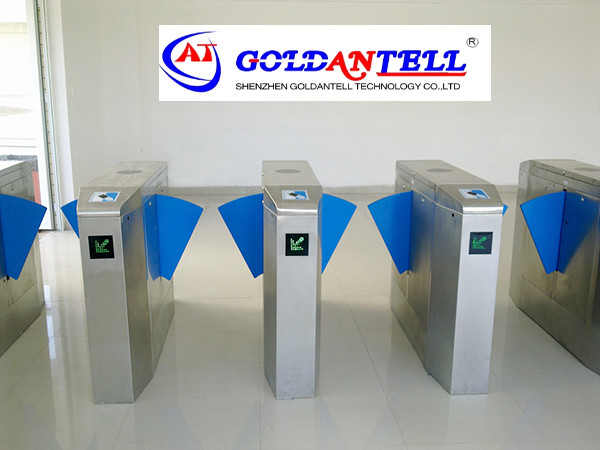

Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance

Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance
Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance
video play

Large Image :  Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-205
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Material: 304 Stainless Steel Size Of Product: 1200*300*1000mm
Net Weight: 80KG Gross Weight: 90KG
Communication Port: RS485 ,TCP/IP Application: Indoor&outdoor
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Product Name: Flap Gate
Custom: Customer Logo , Customer Design
Highlight:

Flap Barrier Turnstile

,

automatic flap barrier



Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel



Office Entrance





Description:


Goldantell flap gate turnstile is s a high- tech product which mainly provides


intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing


barrier. this product is finely processed with complete functions and high level, suitable for high- level


neighborhoods, intelligent buildings, hotel, subway, port and club,etc.






Flap Gate Specifications:



Item

GAT-205-1( single motor )

GAT-205-2( double motors )



Name

Bridge type sharp arc flap gate



Technical parameters



Housing material:

domestic standard 304# stainless steel



Working voltage:

AC220±10%V 50±10%HZ





Size:

1200/1400mm (L) * 280mm (W) * 990mm (H)



Retractable arm length:

260 mm



Pass speed:

40 persons/min (open), 25-30 persons/min (closed)



Passage width:

≤600mm



Normal running life:

3 million



Time of opening/closing:

0.6 second



Time to work after power on:

3 seconds



Reset time after break down:

10 seconds



Direction:

single or bi-directional (optional)



Drive motor:

DC 24 V brush motor



Working environment:

indoor/outdoor (with a tent over)
-10℃~70℃



Communication interface:

standard RS 485 interface,
distance ≤1200m



Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA



Relative humidity:

≤90% coagulation free









Flap gate size:

Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance 0







Competitive Advantage:


1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom



package.



2. Friendly and professional customer service people help you in 16 hours.


3. We can provide not only product, but also system software management.Save your time and cost.



4. Special service from Goldantell:


For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if



spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear



any fee.






Order Procedure:



1: Customer Inquiry
2 : Quotes
3 : To give orders
4 : The next production orders
5 : Business approval
6 :  Production Notification issued
7 : Production starts
8 : Inspection before shippment
9 : The charter provides warehouse:
10 : loading
11 : Commissioned by the declaration
12 :To obtain shipping documents
13 :To prepare the relevant documents
14 : Making the export contract, export commercial invoice, packing list and other documents

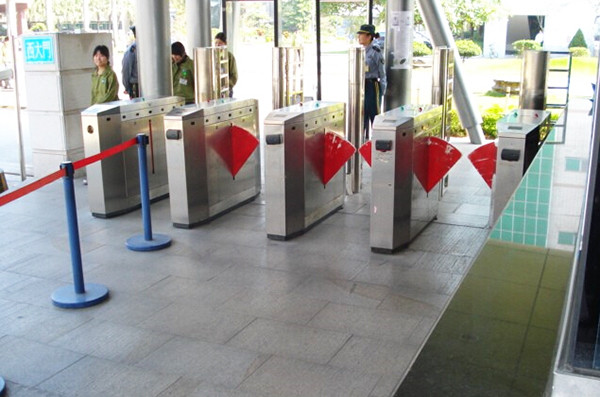

Smart Swipe Cards Controlled Access Gates For Stadium Club Hotel Office Entrance 1
