Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel/316 Stainless Steel | Size Of Product: | 1200/1400*300*1005mm |
---|---|---|---|
Net Weight: | 65KG | Gross Weight: | 70KG |
Communication Port: | RS485 ,TCP/IP | Application: | Indoor&outdoor |
Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Product Name: | Entrance Flap Barrier Gate |
Highlight: | Flap Barrier Turnstile,automatic flap barrier |

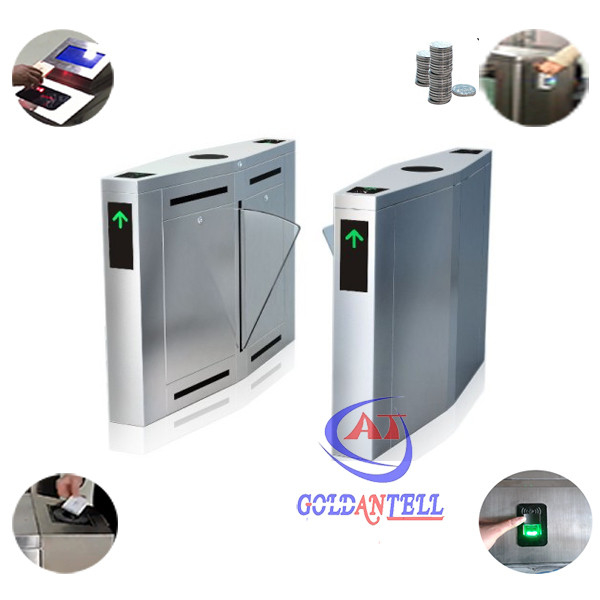

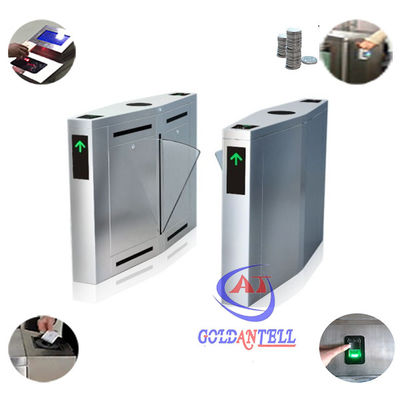

RFID Reader Security Full Auto Entrance Turnstiles High Speed Gate
Systems Barcode Control
Entrance Flap Barrier Gate Specifications:
Name
|
Flap Barrier / Flap Turnstile
|
Transmission
|
Sine Linkage
|
Model No.
|
GAT-219
|
Frenquency
|
50-60Hz
|
Housing Size
|
1200/1400*300*1005mm |
Control type
|
IC/ID / Barcode control / Bimetric accepted
|
Housing Material
|
304 grade stainless steel optional
|
Max Channel Width
|
600mm
|
Passing speed
|
30 person/min
|
Logic voltage
|
24v
|
Working voltage
|
AC220V±10V, 50HZ
|
Direction
|
Single or Bi-directional
|
Motor voltage
|
220V
|
Operating humidity
|
≤90% non-condensing
|
Rated Power
|
80w
|
Operation life
|
≥5 million times
|
Working temperature
|
-45°C--+80°C
|
Net Weight
|
80kg
|
Communication Interface
|
RS485/RS232
|
Gross Weight
|
90kg
|
Appearance, Dimension, Material & Surface Finish :
Appearance: customized according to customer’s requirements,stainless steel thickness of the cabinet:
customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
finish.
System Integration :
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Application :
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,
Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s
Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control.
Competitive Advantage :
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package
.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
FAQ:
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered
patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample
cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
