Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel/316 Stainless Steel | Size Of Product: | 1200*280*980mm |
|---|---|---|---|
| Package Size: | 1280*370*1070mm | Net Weight: | 65KG |
| Gross Weight: | 70KG | Communication Port: | RS485 ,TCP/IP |
| Application: | Indoor&outdoor | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Product Name: | Glass Flap Turnstile Gate | ||
| Highlight: | Flap Barrier Turnstile,automatic flap barrier |
||
Entry Exit Half Height Rfid Access Control Turnstiles for Office
University Office Building

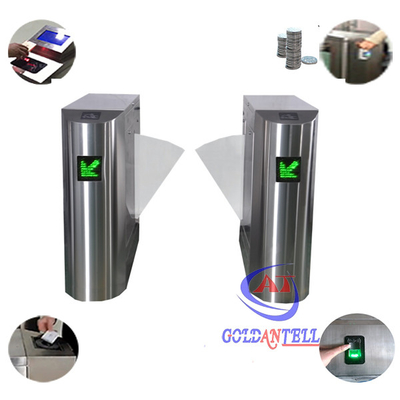

Glass Flap Turnstile Gate Specifications:
|
Item
|
GAT-218-1( single motor ) GAT-218-2( double motors )
|
|
Name
|
Bridge type glass flap turnstile gate |
|
Technical parameters
|
|
|
Housing material:
|
304# stainless steel |
|
Size:
|
1200/1400mm (L) * 300mm (W) * 1000mm (H) |
|
Retractable arm length:
|
260 mm |
|
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed) |
|
Passage width:
|
≤600mm |
|
Normal running life:
|
3 million |
|
Time of opening/closing:
|
0.6 second |
|
Time to work after power on:
|
3 seconds |
|
Reset time after break down:
|
10 seconds |
|
Direction:
|
single or bi-directional (optional) |
|
Drive motor:
|
DC 24 V brush motor |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
|
Relative humidity:
|
≤90% coagulation free |
|
Working voltage:
|
AC220±10%V 50±10%HZ |
Features of Flap Turnstile Gate:
1. a compact electro-mechanical design with unique drive and a self-lock mechanism
2. automatic detection for malfunction
3. input interface for dry contact and switch signal connection
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. No battery is needed
12. emergency interface available
13. traffic light indicating passenger access
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

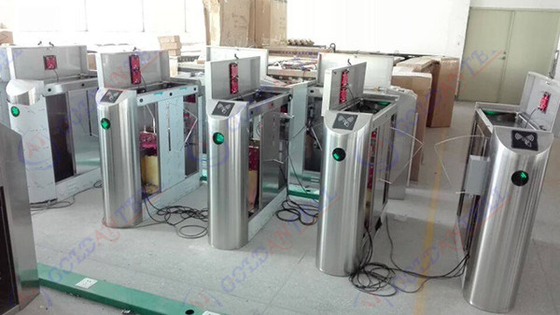

Glass Flap Turnstile Gate Application pictures:
