High Bidirectional Turnstile Full Automatic Flap Pedestrian Half Height Turnstiles Barrier Gate
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificated |
| Model Number | GAT-217 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Direction | Bi-direction/Single Direction Pass | Screen Display | Optional |
|---|---|---|---|
| Type | Single Wing Or Double Wings | Communication Interface | RS485/TCP/IP |
| Passage Width | 600mm | Material | 304 Stainless Steel |
| Net Weight | 60kg | IP Sensos | 6 Pairs |
| Highlight | pedestrian security gates,pedestrian turnstile gate |
||
Product Description
High Bidirectional Turnstile Full Automatic Flap Pedestrian Half Height Turnstiles Barrier Gate
——————————————————————————
Working Performance
1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.
2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.
3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.
6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.
7. With function of self-examine and alarm, it is convenient for maintenance and use.
8. Being able to program running status by the small keyboard in the main board.
Technology parameter
| Optimal flow rate | 40 persons/min (open), 30-35 persons/min (closed) |
| Cabinet dimension | 1200(L)* 300(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | single in/out or Bidirectional |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| Reset time after break down | default 10s,can be changed to fit different demands |
| Wing Material | stainless steel |
| Access Readers | rfid cards , fingerprint, Barcode ,ticket scanners |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| More Optional function | coin controller, counter , sound alarm, speakers |
| Running Life | 3 Million(Continuous Opening and Closing Operation) |
| Protection Grade | IP54 |

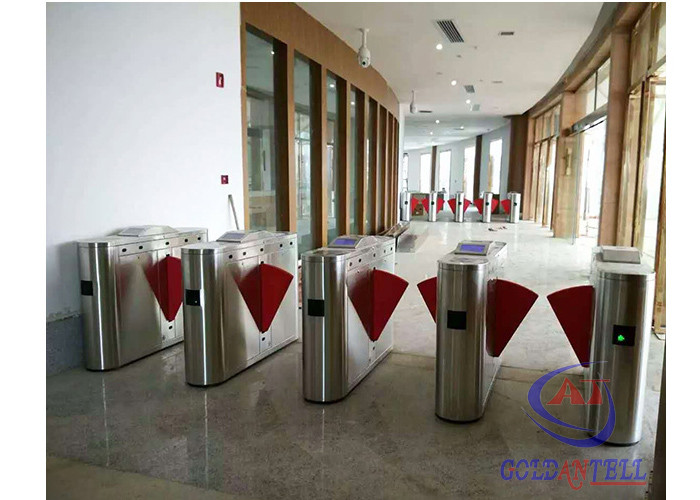

Product Display
Site Appication
Access Width : within 600mm space, more comfortable for pedestrian to pass through the gate.
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
>>> Single Flap Wing Type (Passage width within 600mm)
>>> Double Flap Wing Type (Passage width within 900mm)
Feature & Function
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
Project Sites
