Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel | Passage Width: | 60, 90,100CM OR MORE |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Thinkpark Fingerprint Time Attendance Turnstile,Fingerprint Turnstile |
| Power Supply: | AC220V/110V | Passing Speed: | 30-40 Persons/min |
| Dimension: | 1400*200*1000mm | Application: | School,Office,Club,park |
| Workintion Interfaceg Environment: | Indoor/Outdoor (shelter) | Communication Interface: | RS485/TCP/IP |
| Direction: | Single Or Bi-directional | Net Weight: | 65kg |
| Highlight: | pedestrian security gates,stainless steel turnstiles |
||
Security door access control fastturn waist high turnstile gate with finger print scan or dual RFID code reader
—————————————————————————————
Brief Description
Goldantell Turnstile Barrier Series can be integrated with any third party device like card reader, bar code scanner, LCD panel,fingerprint and face identification device, even ESD tester device. With slim design and enhanced premium hair line polish, can elevate the prestige elegant impression while still effectively restricting unauthorized visitors from your entrance.
Technical specification
| Item NO. | GAT-686 |
| Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Arms opening/closing time | 0.6s |

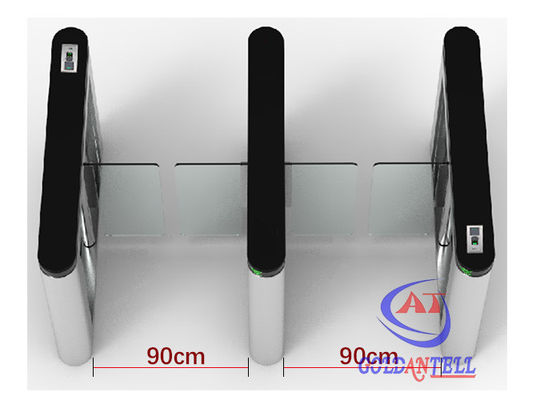

| Passageway width | in below image: each passage is 90CM wide; can be custom-made as per client's requirement |
| Access mode | in below image: is 1 entry 1 exit , single in/out ; can be also Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
|
Reset time after break down |
default 10s, can be changed to fit different demands |

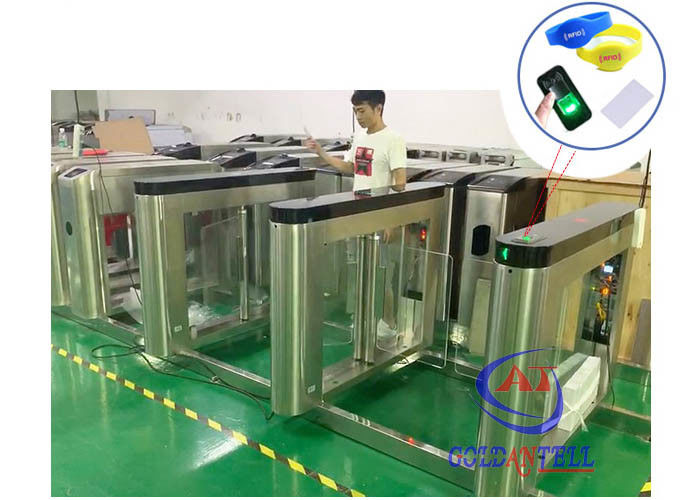

Fingerprint scanner system built-into gate,DISPLAY
1. Additional, the IC/ ID card access control is also included in this fingeprinter scanner system,card function can be optionally set up as per your demand.
2. Specially, we can provide QR code scan system in this gate if you have an interest.
Application
Swing turnstile barrier Series are widely suitable for indoor & outdoor application. It is optimized affordable solution for Airport, Lobby, commercial office building, factory, bus station, game park, colleges and banks. But the Optical Turnstile with colorful led light is NOT advised to be installed outdoor or near sea side.
