Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates

Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates
Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates

Large Image :  Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-105
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Communication Port: RS485 ,TCP/IP Type: One Arm Turnstile Gate
Size Of Product: 1200mm (L) * 165mm (W) * 1000mm (H) Package Size: 1280*255*1070mm
Material: 304 Stainless Steel/316 Stainless Steel Net Weight: 65KG/pc
Gross Weight: 70KG/pc Application: Indoor&outdoor
Delivery: Sample By Air , Quantity Order By Sea
Highlight:

pedestrian turnstile gate

,

turn style gate







Automatic RFID Drop Arm Turnstile Gate , Drop Arm Barrier Gate Multi



Acess Control









Goldantell Drop Arm Turnstile Introduction&Specification

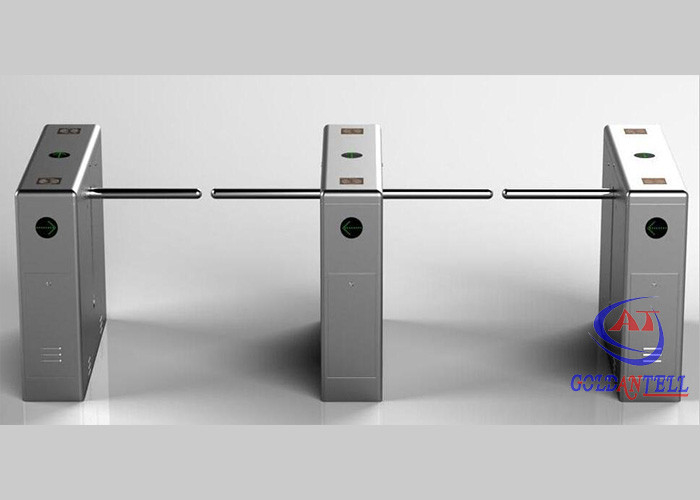

Goldantell Product Picture



Technical Parameters



Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates 0

Housing material: domestic standard 304# stainless steel



Working voltage: AC220±10%V 50±10%HZ



Drive motor: DC24V brush motor



Size: 1200mm (L) * 165mm (W) * 1000mm (H)



Arm length: 300 mm



Arm length (optional): 250-500 mm



Direction: single or bi-directional (optional)



Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free



Time of opening/closing: 1 second



Pass speed: 40 persons/min (open), 25-30 persons/min (closed)



Time to work after power on: 3 seconds



Reset time after break down: 10 seconds



Normal running life: 3 million



Communication interface: standard RS485 interface, distance ≤1200m



Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA































































































Goldantell Product Size



Automatic RFID Drop Arm Turnstile Gate , Multi Access Control Barrier Arm Gates 1









Direction Indicator


The installation position of direction indicator can be adjusted.


The pattern of direction indicator can be customized.









Appearance, Dimension, Material & Surface Finish


Appearance: customized according to customer’s requirement.



Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.


Material of the cabinet: 304 / 316 grade stainless steel.


Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking



finish.







System Integration


Integrate with access control system required by customers, and built-in reader appointed by customer.


Integrate with visitor management system.


Integrate with ticketing system.







Competitive Advantage


1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom



package.


2. we can provide not only product, but also system software management.Save your time and cost.


3. Special service from Goldantell:


For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if



spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any



fee.


4. Friendly and professional customer service people help you in 16 hours.
