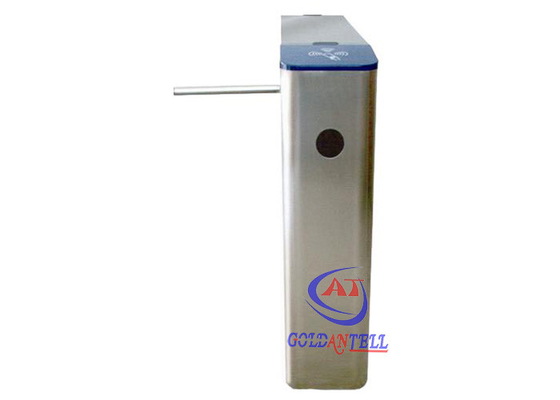

Stainless Steel Full - auto RFID Turnstile Drop Arm Barrier Gate for School / Library / Theater
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-103 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200mm (L) * 165mm (W) * 1000mm (H) | Type | Access Control Automatic Drop Arm |
|---|---|---|---|
| Size Of ProductCommunication Port | RS485 ,TCP/IP | Package Size | 1280*255*1070mm |
| Material | 304 Stainless Steel/316 Stainless Steel | Net Weight | 65KG/pc |
| Gross Weight | 70KG/pc | Application | Indoor&outdoor |
| Delivery | Sample By Air , Quantity Order By Sea | Warranty | 1 Year |
| Highlight | pedestrian turnstile gate,turn style gate |
||
Product Description
Stainless Steel Full - auto Access Control Automatic Drop Arm Turnstile CE Approved
Specification
|
Housing material: domestic standard 304# stainless steel
|
|
Working voltage: AC220±10%V 50±10%HZ
|
|
Drive motor: DC24V brush motor
|
|
Size: 1200mm (L) * 165mm (W) * 1000mm (H)
|
|
Arm length: 300 mm
|
|
Arm length (optional): 250-500 mm
|
|
Direction: single or bi-directional (optional)
|
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free
|
|
Time of opening/closing: 1 second
|
|
Pass speed: 40 persons/min (open), 25-30 persons/min (closed)
|
|
Time to work after power on: 3 seconds
|
|
Reset time after break down: 10 seconds
|
|
Normal running life: 3 million
|
|
Communication interface: standard RS485 interface, distance ≤1200m
|
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
|
Drop Arm Turnstile Features
1) Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and
arms will be set locked. Self-examine
2) Function: it is good for customer to maintain and use.
3 ) Turnstile can set the working condition by press the button of main control board.
4) Anti-pinch function: turnstile have Mechanical / infrared induction Anti-pinch functions (when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed), small intensity (≤2Kg).
5) The turnstile will close the door when somebody enter the gate illegal, Tailgating or break into
negative direction gate.
6) Before received the open signal, the turnstile will lock automatically.
7) The retractable can be adjustable (specific to double swing gate).
8) Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if
you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset
time is 1~60s you can adjust it what time is suit for you). Totally meet the fire protection needs.
9) Infrared sensor reset, infrared induction anti-pinch function (3 or 5 infrared optional).
10) The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
11) The turnstile direction: single or bidirectional optional (pedestrian can enter and exit from one pair of
turnstile).Can manager and long-range control the turnstile directly by managing the computer.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym
