Indoor&Outdoor Access Reader Box Bidirectional Dual-access Full
Height Turnstile, OEM Full High Turnstile For Projects
Technical parameters
|
Housing material: domestic standard 304# stainless steel
|
|
Working voltage: AC220±10%V 50±10%HZ
|
|
Operation Voltage:DC24V
|
|
Size:2600L*1350W*2300H(MM)
|
|
Drive motor: DC24V brush motor
|
|
Passage width: ≤600mm
|
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃
Relative humidity: ≤90% coagulation free
|
|
Time of opening/closing: 0.2 second
|
|
Pass speed: 30 persons/min
|
|
Time to work after power on: 3 seconds
|
|
Reset time after break down: 10 seconds
|
|
Normal running life: 3.5 million
|
|
Communication interface: standard RS485 interface, distance ≤1200m
|
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
|
Features
1. Unique two-way anti-reverse function.
2, Programmable device's operating status through the built-in small press plate on control board,
3, Anti-rushing function ,when the gate signal is not received, the turnstile arms locked automaticlly.
4, The center rotor will be set free (default) or locked (optional) automatically when the power is off.
5, Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you)
6, The turnstile can work with door access control system/ consumption system /ticket system/biometric
recognition system/ face recongnition/ESD system and so on
7, Can be unidirectional or bidirectional control of personnel access.
8, Can manager and long-range control the turnstile directly by managing the computer.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special
Access Control
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.

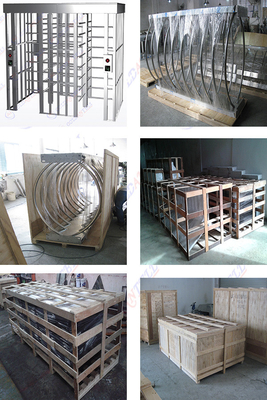

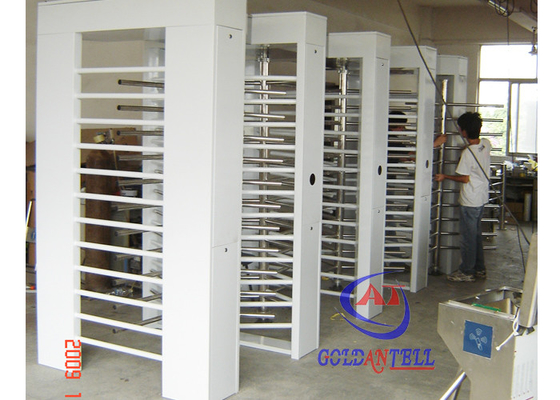

Full Height Door Detail Pictures
Access Control Systems
