Product Details:
Payment & Shipping Terms:
|
| Name: | Outdoor Flap Barrier Gate | Size Of Product: | 1400/1200*280*980mm |
|---|---|---|---|
| Package Size: | 1480/1280*370*1070mm | Net Weight: | 70KG |
| Gross Weight: | 75KG | Communication Port: | RS232, RS485 , TCP/IP |
| Arm Color: | Transparent, Red, Yellow, Green, Blue. Pink, Purple | Compatible Access: | Biometric Acces , RFID Acess Control Reader , Coin Acess , QR Code Reader,Bar Code System , ESD |
| Application: | Outdoor&indoor | ||
| High Light: | automatic flap barrier,Flap turnstile |
||

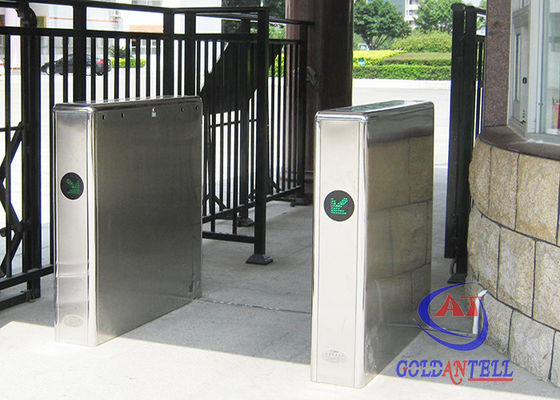

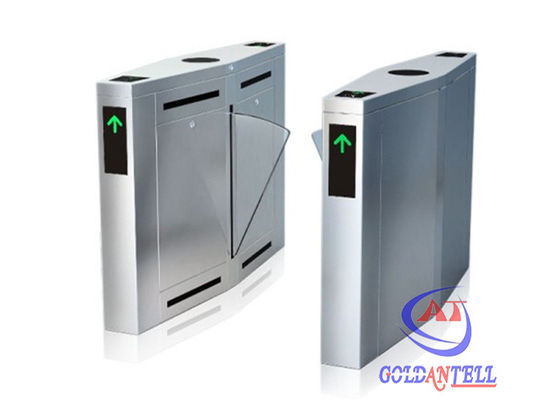

Entrance Exit Outdoor Flap Barrier Gate , Automatic Waterproof Flap Barrier
for Exit Attendance
Brief Introduction of Goldantell Flap Barrier Gate
Goldantell outdoor flap barrier gate is s a high-tech product which mainly provides intelligent management
to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely
processed with complete functions and high level, suitable for high-level neighborhoods, intelligent
buildings, hotel, subway, port and club,etc.
This equipment is subtly integrated with machine, electronics, micro-processor control and ID
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);Double
motors (suitable for multiple passageways)
Flap Barrier Technical Parameters
|
Housing material: domestic standard 304# stainless steel
|
|
Working voltage: AC220±10%V 50±10%HZ
|
|
Working movement: DC24V solenoid valve
|
|
Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H)
|
|
Retractable arm length: 260 mm
|
|
Passage width: ≤600 mm
|
|
Direction: single or bi-directional (optional)
|
|
LED light: direction arrow
|
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃
Relative humidity: ≤90% coagulation free |
|
Time of opening: 0.6 second
|
|
Pass speed: 40 persons/min (open), 25-30 persons/min (closed)
|
|
Reset time after break down: 10 seconds
|
|
Normal running life: 3 million
|
|
Communication interface: standard RS485 interface, distance ≤1200m
|
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Functions
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms
will be set locked.turnstile can check by itself when it is have problem, it is good for customer to maintain
and use
2. Turnstile can setting the working condition by press the button of main control board.
3.This model is newest second generation of movement (mute), soft baffle (PU mold)
4. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed).
5. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into
negative direction gate.
6. Before received the open signal, the turnstile will lock automatically
7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
8. Infrared reset function & Infrared induction clamp function
(Optional:3 pairs or 5 pairs Infrared)
9. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on
10. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
11. Can manager and long-range control the turnstile directly by managing the computer.
Application
Integrate with access control system required by customers, and built-in reader appointed by
customer.Integrate with visitor management system.Integrate with ticketing system.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Friendly and professional customer service people help you in 16 hours.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
