Double Motor Full Automatic Retractable Airport Turnstile barrier Gate Mechanism
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-209 |
| Minimum Order Quantity | 1 pair |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Double Motor Flap Turnstile | Size Of Product | 1200*280*980mm |
|---|---|---|---|
| Package Size | 1280*370*1070mm | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,RS232, TCP/IP |
| Arm Color | Transparent, Red, Yellow, Green, Blue. Pink, Purple | Compatible | RFID Acess Control Reader ,Biometric Acces,Coin Acess,QR Code Reader,Bar Code System,ESD |
| Application | Indoor&outdoor | ||
| Highlight | Flap Barrier Turnstile,Flap turnstile |
||
Product Description

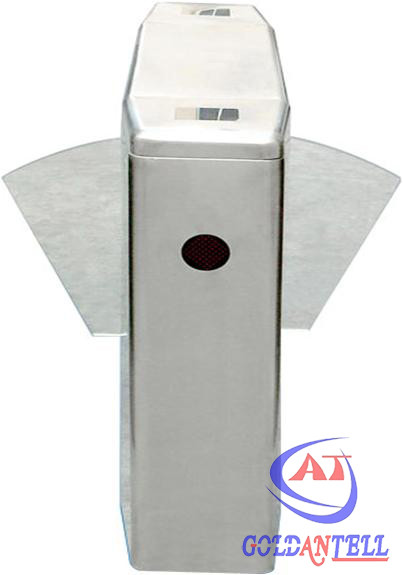

Double Motor Full Automatic Retractable Airport Turnstile barrier Gate Mechanism
Specifications
|
Model
|
GAT-209 |
|
Cabinet dimension
|
1200mm(L)×280mm(W)×990mm(H) |
|
Stretching-out flap length
|
440mm |
|
The max lane width
|
900mm |
|
Cabinet material
|
304 stainless steel & aluminum alloy |
|
Power supply
|
AC220V±15%, AC110V±15% 50/60Hz |
|
Motor voltage
|
DC24V (brush motor) |
|
Access device input voltage
|
dry contact |
|
Max flow rate
|
30~40 people per minute |
|
Flap opening/closing time
|
0.5s ~ 1s |
|
reset time when power on
|
2s |
|
protection grade
|
IP32 |
|
working environment
|
outdoors (with shelter) and indoors. |
|
working temperature
|
-25°C ~ +50°C |
Quick Detail:
- Name: Flap Barrier gate
- Application: Business buliding
- Material: Stainless steel
- Feature: Adjustable access directions
- Voltage: 110V/220V
- Certificate: CE,ISO
- Flow speed:30-40 people per minute
- Opening time:1s
- Arm length:500~900mm
Description:
1. Intelligent flap barrier gate is a brand-new product of Goldantell company. Flap barrier gate as the
upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access
control. Goldatell flap barrier has features of precise craftsmanship, comprehensive functions and high
technology.
2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high
level venues.
3. Flap barrier gate is the combination of machinery, electronic, CPU control and variety of personal
authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are
compatible with the flap barrier. Choosing different identification equipment and applying reliable security
protection devices, alarm devices, direction indicator to realize the intelligent management of access
control is comply with the fire safety requirements.
4. Flap barrier gate motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.
Applications:
High class communities, intelligent buildings, hotels, subway stations and other high level venues.
Functions and Features:
1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular
gear clutch structure).
2. Automatic detection for malfunctions.
3. Input interface available for dry contact and switch signal connection.
4. Adjustable auto-delay closing
5. Infrared photocells for safety access
6. Alarm for unauthorized access and no access against passenger flow
7. Anti-reverse passing
8. Auto-closing when power on
9. Auto-open and free access when power off
10. Adjustable access directions.
11. No battery is needed.
12. Emergency interface available.
13. Traffic light indicating passenger access.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
