Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light

  • Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light
  • Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light
  • Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light
  • Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ ROHS/ FCC/ IS9001
Model Number GAT-509
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1400 (L) * 290 (W) * 1000 (H) Mm Material 304 Stainless Steel/316 Stainless Steel
Type Single Access Falf Height Turnstile Net Weight 200KG
Gross Weight 250KG Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Communication Port RS485 ,TCP/IP Application Prison, Factory, Government Etc.
Package 3 Packages,7CBM
Highlight

automatic entrance turnstiles

,

controlled access turnstiles
Leave a Message
Product Description
Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light

Stainless Steel 304 / 316 Fingerprint Full Height Turnstile With LED Light / Counter Function / Comfortable Passageway Space

Product Description
  • Available in two configurations: single door (GAT-509 model) or double door access
  • Available in half height (waist height) or full height configurations
  • High-tech intelligent passageway management system with durable, rust-proof construction
  • Provides comfortable passage space while preventing unauthorized access
  • Precision engineered for high-security applications including prisons, government buildings, offices, and statistical facilities
Technical Specifications
Parameter Specification
Dimensions 1400 (L) * 290 (W) * 1000 (H) mm
Working Voltage AC220±10%V 50±10%HZ
Working Movement DC 24V solenoid valve
Roof Dimensions Φ 1500 mm
Reset Time After Breakdown 10 seconds
Passage Width ≤600 mm
Opening Time 0.2 second
Passage Speed 30 persons/min
Startup Time After Power On 3 seconds
Operational Lifespan 3 million cycles
LED Indicator Direction arrow display
Direction Control Single or bi-directional (optional)
Operating Environment Indoor/outdoor (with shelter) -25℃ to 70℃
Housing Material 304# stainless steel (316 optional)
Humidity Tolerance ≤90% (non-condensing)
Communication Interface RS 485 (distance ≤1200m)
Input Interface +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA
Key Features
  • LED indicator light for clear directional guidance
  • Compatible with access control, biometric, ticketing, and other security systems
  • Advanced two-way anti-reverse functionality
  • Programmable operation status via control board interface
  • Anti-rushing mechanism automatically locks without valid access signal
  • Fire safety compliant with automatic unlock during power failure
  • Auto-reset function (1-60s adjustable, default 10s) for unattended passages
  • Configurable for unidirectional or bidirectional access control
  • Remote management capability via computer interface
  • Customizable housing length and design options
  • Adjustable normally open/closed settings for diverse installation requirements
Product Details

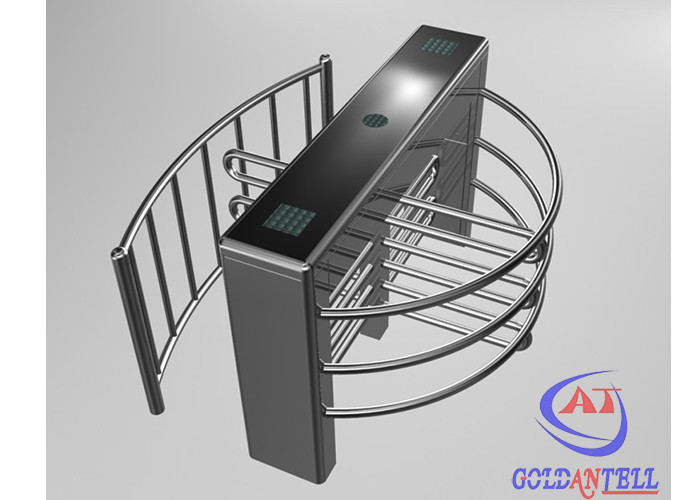

Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light 0

Material: Standard 304 stainless steel (316 optional)

Optional LED indicator light and fingerprint reader

Compatible with multiple control methods: push button, coin operation, card readers

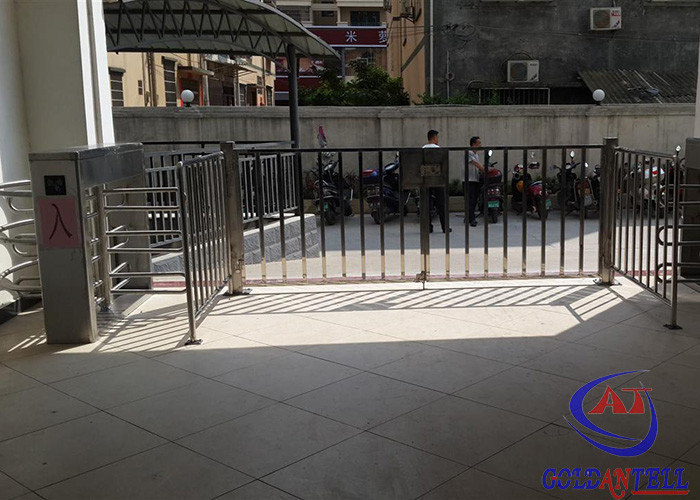

Project Example
Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light 1

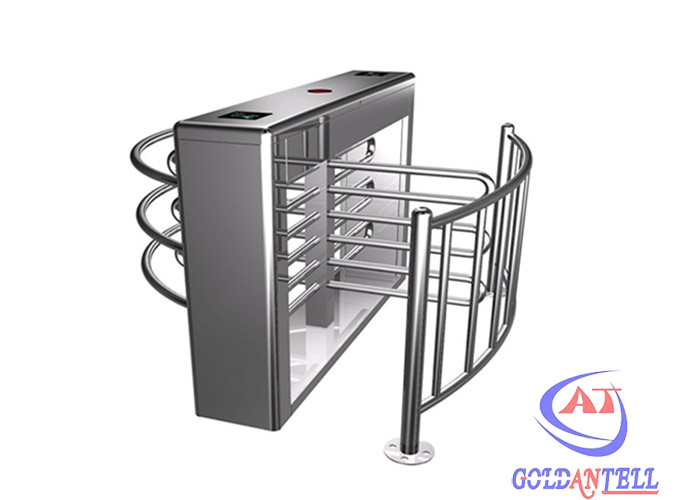

Product Dimensions
Single Access Fingerprint Automatic Full Height Turnstile With LED Indicator Light 2
Competitive Advantages
  • 24-month comprehensive quality guarantee
  • Custom design and logo options (free for bulk orders)
  • Fast and reliable delivery
  • Dedicated engineering support
  • Special distributor/agent pricing programs
  • Standard export carton packaging (wooden case recommended)
  • CE and ROHS certified
Packaging Information
  • Crate package:
    • Double access unit: 4 pieces, ~9 m³ volume
    • Single access unit: 3 pieces, ~7 m³ volume
  • Closed wooden case packaging available
