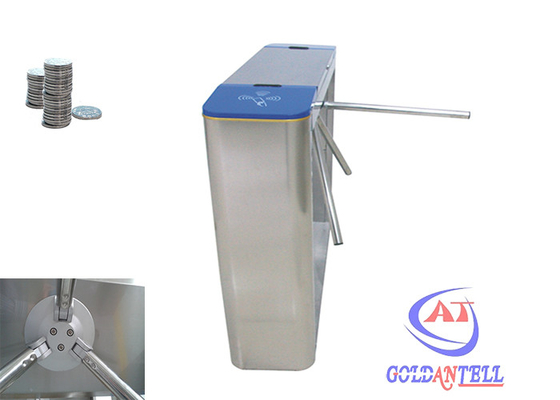

Three arms Tripod Barrier Gate RFID Turnstile with IC / ID card reader for Subway Station
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-317 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication Port | RS485 ,TCP/IP | Application | Pulic Toilelt, Park, Office Building, Club, Etc. |
|---|---|---|---|
| Net Weight | 65KG | Gross Weight | 70KG |
| Product Name | 304 SUS Automatic Tripiod Turnstile | Material | 304 Stainless Steel/316 Stainless Steel |
| Type | Three Arm / Rail Turnstile | Package Size | 1280mm (L) * 360mm (W) * 1060mm (H) |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Size Of Product | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Highlight | waist high turnstiles,turn style gate |
||
Product Description
Three arms Tripod Barrier Gate Control with IC / ID card reader for Subway Station , Railway , Amusement Park
Specifications:
| Technical Parameters | |
| Size | 1200 mm (L) * 280 mm (W) * 1000 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC 24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60 kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Housing material: | domestic standard 304# stainless steel |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Feature & function:
The Tripod Turnstiles are very robust products able to function inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications
1. Security
. Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
. Mechanism cannot be forced
2. Economic
. Inactive arms do not hinder the passage
. Simple to install
3. Flexibility
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control
Application:
1. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
2. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.
The commonly used control method & Cases:
Control ways | pictures | Application place |
| Coin operation |  | Restroom, park, |
Fingerprint | Gym, sport club, buildings, office | |
RFID card | Office, | |
Manual | Buildings entrance |
Description:
1. System Integration: This equipment is integrated with mechanism,electric and micro- controller and
various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on, to
provide intelligent control and management to flow control.
2. Standard features: Made of 304 /316 stainless steel, Goldantell tripod turnstile with nice and elegant
shape, anti- rust,durable, Resistant to external damage.
3. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to
people. Prevent illegal in and out.Arms off in emergency case.
4.Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
5. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
Access control system:
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
Package:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
