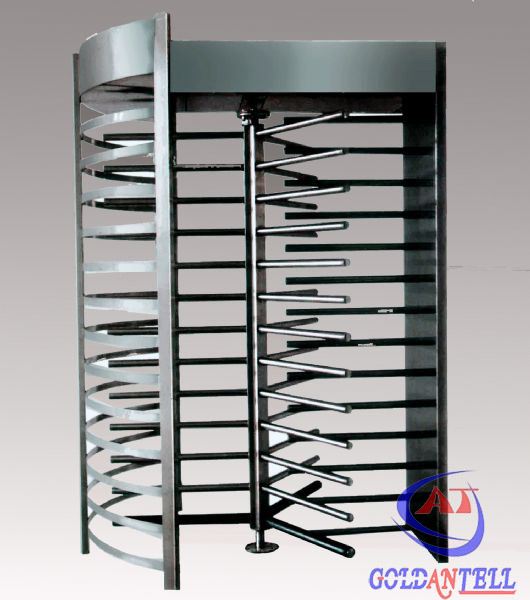

Stainless Steel Security Full Height Turnstile Gate with Electric Mechanical Management
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/SGS/IS9001 |
| Model Number | GAT-502 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C, Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Prison, Factory, Government Etc. | Size Of Product | 1630*1500*2300mm (MM) |
|---|---|---|---|
| Package | 3 Packages,7CBM | Material | 304 Stainless Steel/316 Stainless Steel |
| Type | Single Access Full Height Turnstile | Net Weight | 200KG |
| Gross Weight | 250KG | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Communication Port | RS485 ,TCP/IP | ||
| Highlight | controlled access turnstiles,security turnstile gate |
||
Product Description
All-Electric Mechanical Management Security Full Height Turnstile Gate Stainless Steel
Descriptions:
Goldantell Full Height Turnstile is available for any area which needs a high level of security without persons to monitor. The machine is well designed to be rustproof, durable and able to resist external destroy.
Full Height Turnstile is normally designed to be Semi-Automatic Type
Full Height Turnstile with 3-arm obstacle: the center rotor rotates 90/120 degrees per time, and it offers a comfortable space for users.
Specifications:
|
Technical parameters |
|
| Housing material |
domestic standard 304# stainless steel |
| Size |
1630*1500*2300mm (MM) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Roof Dimensions : | Φ1500MM |
| Reset time after break down: | 10 seconds |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 40 persons/min |
| Time to work after power on: |
3 seconds |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Functions & features:
1. Unique two-way anti-reverse function.
2. Through the control board's built-in small press plate, programmable device's operating status.
3. Anti- rushing function gate signal is not received, the channel automatically lock brake stick.
4. Power rear channel automatically unlock, free rotation, to meet the fire safety requirements, channel lock automatically after power off.
5. With automatic reset function, gate, after a specified period of time insiders did not pass, the system will automatically cancel the access rights of pedestrians, the reset time is 1S ~ 60S Adjustable (system default time is 10S).
6. Can be used with access control systems, consumer systems, electronic ticket system, biometric systems, static tester and other equipment of convergence.
7. Can be unidirectional or bidirectional control of personnel access.
8. Can be directly through the management computer to realize remote control and management.
9. LED indicator light.
10. Box house can lengthen, can make custom design.
11. Normally open or closed can be adjust to meet the requirements of the different place.
Application places:
Prison, Office building, Government, School, Hotel, Super market, Bank, Park

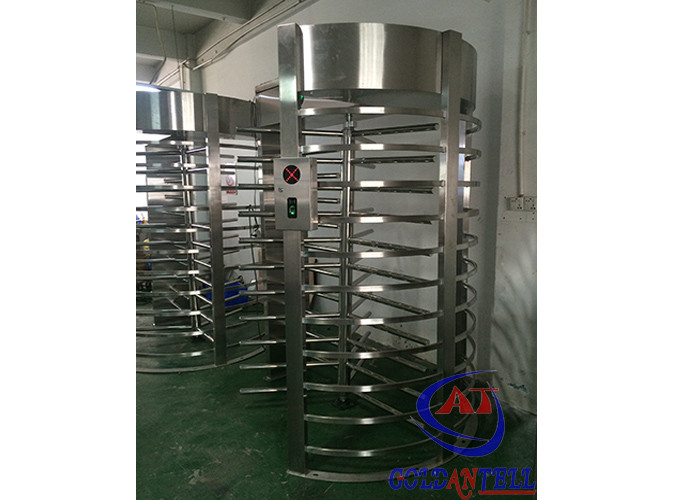

Product details show:
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin- operation, access control system
like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Competitive Advantage:
1. All items have 24 month quality guarantee.
2. Custom design shape and logo ,for large amount, custom logo available for free.
3. Fast delivery.
4. Supported by professional engineers.
5. Special discount of our distributors or agents in their area.
6. Packing in standard export carton, suggest you pack it by wooden case to protect the products.
7. CE, ROSH available.
Packing details show:
1. Crate package
- 1 pc double access full height turnstile: with 4 pieces of package, about 9 m³.
- 1 pc single access full height turnstile: with 3 pieces of package, about 7 m³.
2. Closed wooden case
