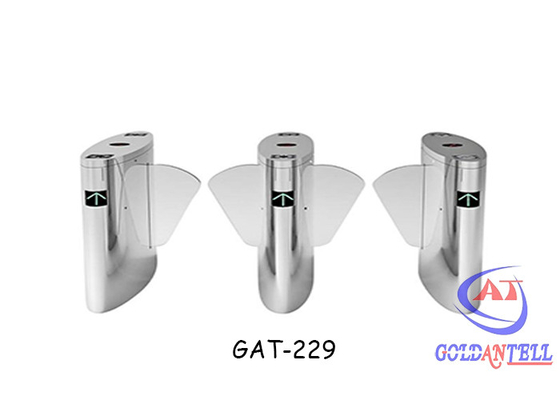

Infrared Sensor Turnstile Flap Barrier Gate With Intelligent Anti - Pinch / Tail / Retrogradation Function

Infrared Sensor Turnstile Flap Barrier Gate With Intelligent Anti - Pinch / Tail / Retrogradation Function
Infrared Sensor Turnstile Flap Barrier Gate With Intelligent Anti - Pinch / Tail / Retrogradation Function

Large Image :  Infrared Sensor Turnstile Flap Barrier Gate With Intelligent Anti - Pinch / Tail / Retrogradation Function

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-229
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: 304 SUS Flap Turnstile Material: 304 Stainless Steel/316 Stainless Steel
Size Of Product: 1200*280*1000mm Package Size: 1280*370*1070mm
Application: Indoor&outdoor Net Weight: 65KG
Gross Weight: 70KG Communication Port: RS485 ,TCP/IP
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Highlight:

automatic flap barrier

,

Flap turnstile

Infrared Sensor Turnstile Flap Barrier Gate With Intelligent Anti - Pinch / Tail / Retrogradation Function



Description:


1. Goldantell smart translational speed gate turnstile is s a high- tech product which mainly provides
intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing
barrier. this product is finely processed with complete functions and high level, suitable for high- level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
2. This equipment is subtly integrated with machine, electronics, micro- processor control and ID
identification, provides convenience for the use of card reader identification equipment, such as IC card,

ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway
through choosing various identification equipment and adopting fair, reliable security protection, alarming
equipment and direction indicating equipment...
3. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);
Double motors (suitable for multiple passageways).




Specifications:



Item

GAT-229-1( single motor ) ;   GAT-229-2( double motors )

Name

Bridge type sharp flap turnstile

Technical parameters
Working voltage: AC220±10%V 50±10%HZ
Size:

1200/1400mm (L) * 280mm (W) * 1000mm (H)

Retractable arm length:

260 mm
Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Passage width: ≤600mm
Normal running life: 3 million
Time of opening/closing: 0.6 second

Time to work after power on:

3 seconds

Reset time after break down:

10 seconds
Direction: single or bi-directional (optional)
Drive motor: DC 24 V brush motor
Working environment:

indoor/outdoor (with a tent over)      -10℃~70℃

Communication interface:

standard RS 485 interface, distance ≤1200m

Input interface:

+12V level signal or pulse  width>100 ms
12V pulse, drive current>10 mA

Relative humidity: ≤90% coagulation free
Housing material:

domestic standard 304 # stainless steel




Application:



Public Places

Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls,
Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings.

Entertainment Places

Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym

Business Organizations

Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and
Exit Attendance





Access control system:



1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.

2. support special function: counter, coin- operation.

3. ESD tester system and function.





Special function:


1. LED counting function
2. Box house can lengthen, swing arm lengthen
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
Voice Prompt Function
4. Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions
5. Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and

accurately.





Competitive Advantage:


1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.





Package:


1. One pair need two packages.
2. With access control system, need the closed wooden box packing.
3. Without the access control system, two ways for your choice: crate and closed wooden box.
