Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

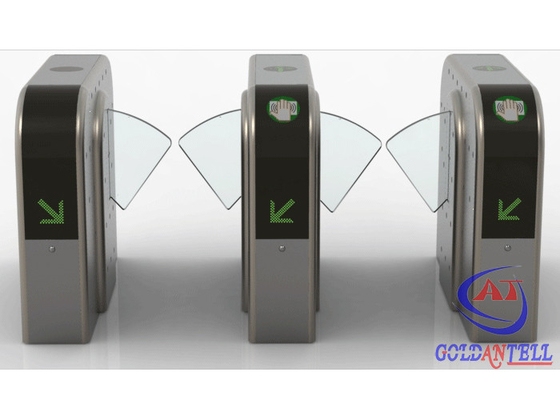

Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System

Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System
Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System

Large Image :  Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-224
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: 304 SUS Flap Turnstile Size Of Product: 1200*280*1000mm
Application: Indoor&outdoor Net Weight: 65KG
Gross Weight: 70KG Communication Port: RS485 ,TCP/IP
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material: 304 Stainless Steel/316 Stainless Steel
Package Size: 1280*370*1070mm
Highlight:

automatic flap barrier

,

Flap turnstile

Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System


Description:
Goldantell intelligent turnstile is s a high- tech product which mainly provides intelligent management to
passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely
processed with complete functions and high level, suitable for high- level neighborhoods, intelligent
buildings, hotel, subway, port and club,etc.
please note: Classified into two kinds:single motor (suitable for single passageway and multiple passageway.); Double motors (suitable for multiple passageways).

Specifications:

Item

GAT-224-1( single motor ) ;  GAT-224-2( double motors )

Name

Bridge type sharp flap turnstile

Technical parameters
Size:

1200/1400mm (L) * 280mm (W) * 1000mm (H)

Retractable arm length:

260 mm
Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Passage width: ≤600mm
Normal running life: 3 million
Time of opening/closing: 0.6 second

Time to work after power on:

3 seconds

Reset time after break down:

10 seconds
Direction: single or bi-directional (optional)
Drive motor: DC 24 V brush motor
Working environment:

indoor/outdoor (with a tent over)    -10℃~70℃

Communication interface:

standard RS 485 interface, distance ≤1200m

Input interface:

+12V level signal or pulse  width>100 ms
12V pulse, drive current>10 mA

Relative humidity: ≤90% coagulation free
Housing material:

domestic standard 304 # stainless steel

Working voltage: AC220±10%V 50±10%HZ


Package:

1. One pair need two packages.
2. With access control system, need the closed wooden box packing.
3. Without the access control system, two ways for your choice: crate and closed wooden box.

Function& features:
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
2. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into
negative direction gate.
3. Before received the open signal, the turnstile will lock automatically
4. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
6. Infrared induction clamp function (4 pairs Infrared).
7. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by managing the computer.
10. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
11. LED counting function
12. Box house can lengthen, swing arm lengthen
13.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
Voice Prompt Function
14. Normally open or closed can be adjust to meet the requirements of the different place. Sound and
light alarm prompt functions.
15.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and
accurately.

Application:

Entertainment Places

Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym

Public Places Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings.

Business Organizations

Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance


System Integration:
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.

Popular items for your choice:
Half Height Prestige Security Flap Gate Bidirectional Intelligent Flap Turnstile With Rfid Door Entry System 0
Our service:
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
