Enter Exit RFID Card / Fingerprint / ESD Tester Flap Barrier Turnstile Automatic Control System

  • Enter Exit RFID Card / Fingerprint / ESD Tester Flap Barrier Turnstile Automatic Control System
  • Enter Exit RFID Card / Fingerprint / ESD Tester Flap Barrier Turnstile Automatic Control System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-223
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 SUS Flap Turnstile Size Of Product 1200*280*1000mm
Package Size 1280*370*1070mm Application Indoor&outdoor
Net Weight 65KG Gross Weight 70KG
Communication Port RS485 ,TCP/IP Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Material 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

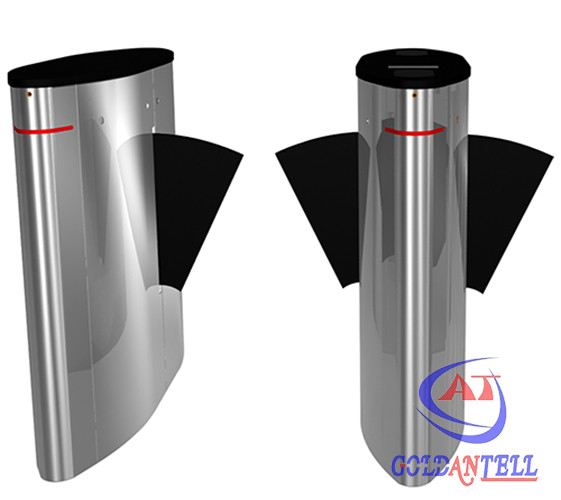

Enter Exit RFID Card / Fingerprint / ESD Tester Flap Barrier Turnstile Automatic Control System
Goldantell intelligent turnstile is a high-tech product designed for intelligent passageway management. As an upgraded version of traditional tripod turnstiles and swing barriers, this product features fine processing, complete functions, and high-level performance, making it suitable for upscale neighborhoods, intelligent buildings, hotels, subway stations, ports, clubs, and similar environments.
Specifications
Item GAT-223-1 (single motor)
GAT-223-2 (double motors)
Name Bridge type sharp flap turnstile
Size 1200/1400mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity ≤90% (non-condensing)
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Function & Features
  • Automatic door closure for illegal entry, tailgating, or negative direction breaches
  • Automatic locking before receiving open signal
  • Collision avoidance function protects internal transmission mechanism
  • Automatic reset function with adjustable timing (1-60 seconds)
  • Optional infrared reset function (4 or 6 pairs)
  • Infrared induction clamp function (4 pairs)
  • Compatibility with various systems: access control, consumption, biometric recognition, ESD
  • Bi-directional operation capability
  • Remote management via computer
  • Flashing light prompt for easy troubleshooting
Special Functions
  • LED counting function
  • Customizable box house and swing arm length
  • Advanced infrared logical judgment (8 or 10 pairs optional)
  • Voice prompt function
  • Adjustable normally open/closed operation
  • Sound and light alarm prompt functions
  • Stroboscopic lamp for quick problem identification
Applications
Entertainment Places Public Places Business Organizations
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residence Area, Offices Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
System Integration
This equipment integrates mechanical, electronic, and microprocessor control systems with ID identification technology. It supports various identification methods including IC card, ID card, bar code, and fingerprint recognition, enabling intelligent passageway control and management with reliable security protection, alarm systems, and direction indicators.
Access Control System
  • Multiple authentication options: fingerprint, face recognition, card reader, QR code, barcode ticket system
  • Special functions: counter operation, coin-operation
  • ESD tester system integration
Enter Exit RFID Card / Fingerprint / ESD Tester Flap Barrier Turnstile Automatic Control System 0
Competitive Advantages
  • 16-hour professional customer service support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system software management solutions
  • Special repair service: video-based troubleshooting and free spare parts replacement within 1 year
Packaging
  • One pair requires two packages
  • With access control system: closed wooden box packing
  • Without access control system: choice between crate or closed wooden box
