CE Approved Flap Barrier Gate With IR Sentor Function To Prevent Pinch / Trailing / Retrograde

  • CE Approved Flap Barrier Gate With IR Sentor Function To Prevent Pinch / Trailing / Retrograde
  • CE Approved Flap Barrier Gate With IR Sentor Function To Prevent Pinch / Trailing / Retrograde
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-214
Document Turnstile-Goldantell CE cer...7E.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 SUS Flap Turnstile Material 304 Stainless Steel/316 Stainless Steel
Size Of Product 1200*280*1000mm Package Size 1310*390*1110mm
Application Indoor&outdoor Net Weight 85KG
Gross Weight 80KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Highlight

Flap Barrier Turnstile

,

Flap turnstile
Leave a Message
Product Description

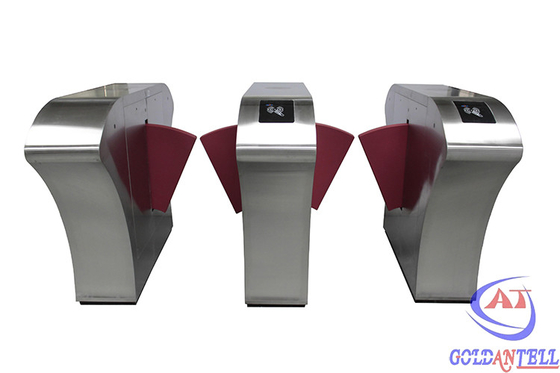

CE Approved Flap Barrier Gate With IR Sensor Function To Prevent Pinch / Trailing / Retrograde
Goldantell smart translational speed gate turnstile is a high-tech product which provides intelligent management to passageways. It is an upgraded product of intelligent tripod turnstile and swing barrier, featuring complete functions and high-level performance suitable for high-level neighborhoods, intelligent buildings, hotels, subway stations, ports, and clubs.
Technical Specifications

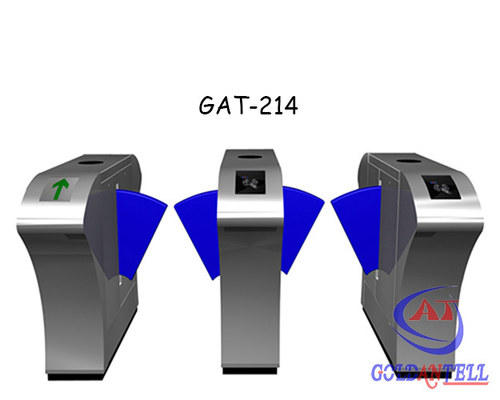

Item GAT-214-1 (single motor); GAT-214-2 (double motors)
Name Bridge type sharp flap turnstile
Working voltage AC220±10%V 50±10%HZ
Size 1200/1400mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Housing material Domestic standard 304 # stainless steel
Key Features
  • Integrated with machine, electronics, micro-processor control and ID identification
  • Compatible with various identification equipment (IC card, ID card, bar code, fingerprint)
  • Available in single motor (for single/multiple passageways) or double motors (for multiple passageways)
  • LED counting function
  • Infrared logical judgment function (8 or 10 pairs Infrared optional)
  • Voice prompt function
  • Adjustable normally open/closed settings
  • Sound and light alarm prompt functions
  • Stroboscopic lamp prompt function for quick problem identification
Access Control System Options
  • Fingerprint, face recognition, card reader, QR code, or barcode ticket system
  • Special functions: counter, coin-operation
  • ESD tester system and function
CE Approved Flap Barrier Gate With IR Sentor Function To Prevent Pinch / Trailing / Retrograde 0
Applications
Public Places Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residence Area, Offices, Commercial buildings
Entertainment Places Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym
Business Organizations Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Competitive Advantages
  • 10+ years ODM/OEM experience with custom product design, logo, and packaging
  • Complete solution including product and system software management
  • Convenient repair service: video diagnosis with free spare parts within 1 year warranty
  • Friendly and professional customer service available 16 hours/day
Packaging Options
  • One pair requires two packages
  • With access control system: closed wooden box packing
  • Without access control system: choice of crate or closed wooden box
