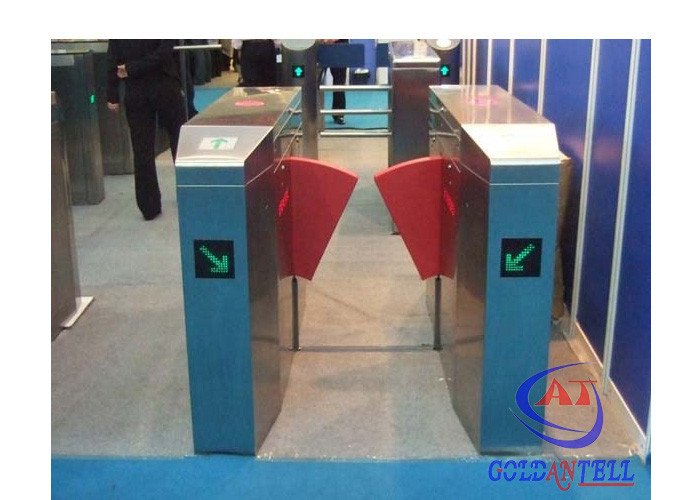

Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min

  • Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min
  • Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-212
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*280*1000mm Package Size 1280*370*1070mm
Net Weight 65KG Gross Weight 70KG
Communication Port RS485 ,TCP/IP Application Indoor&outdoor
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Product Name 304 SUS Flap Turnstile
Material 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

Flap turnstile
Leave a Message
Product Description
Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons/Minute
Competitive Advantages
  • ODM/OEM services including custom product design, logos, packaging, and sizing
  • Comprehensive system solutions with various software management options
  • 16-hour professional customer support service
  • Exceptional after-sales service including remote troubleshooting and free spare parts replacement within 1 year
Applications
Public Places: Subways, airports, stations, libraries, parks, museums, offices, and commercial buildings
Entertainment Venues: Movie theaters, fitness centers, clubs, and swimming halls
Business Facilities: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrances
Technical Specifications
Item GAT-212-1 (single motor); GAT-212-2 (double motors)
Working Voltage AC220±10%V 50±10%HZ
Dimensions 1200/1400mm (L) × 280mm (W) × 1000mm (H)
Retractable Arm Length 260mm
Passage Speed 40 persons/min (open), 25-30 persons/min (closed)
Passage Width ≤600mm
Operational Lifespan 3 million cycles
Opening/Closing Time 0.6 seconds
Power On Delay 3 seconds
Reset Time After Failure 10 seconds
Direction Single or bi-directional (optional)
Drive Motor DC 24V brush motor
Operating Environment Indoor/outdoor (with cover) -10℃～70℃
Communication Interface Standard RS485 interface (distance ≤1200m)
Input Interface +12V level signal or pulse width >100ms
Humidity Tolerance ≤90% (non-condensing)
Housing Material 304# stainless steel
Key Features
  • Configurable working modes via control panel
  • Dual anti-pinch protection (mechanical and infrared)
  • Automatic locking for unauthorized access attempts
  • Collision avoidance system for arm protection
  • Adjustable automatic reset function (1-60 seconds)
  • Optional infrared reset system (4 or 6 pairs)
  • Compatible with various access control systems
  • Bi-directional operation capability
  • Remote management via computer
  • Visual status indicators and alarm functions
  • Self-diagnostic system for maintenance
Motor Configuration Comparison
Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min 0
Customization Options
  • Customizable appearance design
  • Stainless steel thickness options: 1.2-2.0mm
  • Material grades: 304 or 316 stainless steel
  • Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
System Integration
  • Compatible with fingerprint, facial recognition, card reader, QR code, and barcode systems
  • Special functions: counting and coin-operation capabilities
  • ESD tester system integration
Packaging Options
  • Standard packaging: two packages per pair
  • With access control system: enclosed wooden box
  • Without access control system: choice of crate or enclosed wooden box
Application Examples
Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min 1
